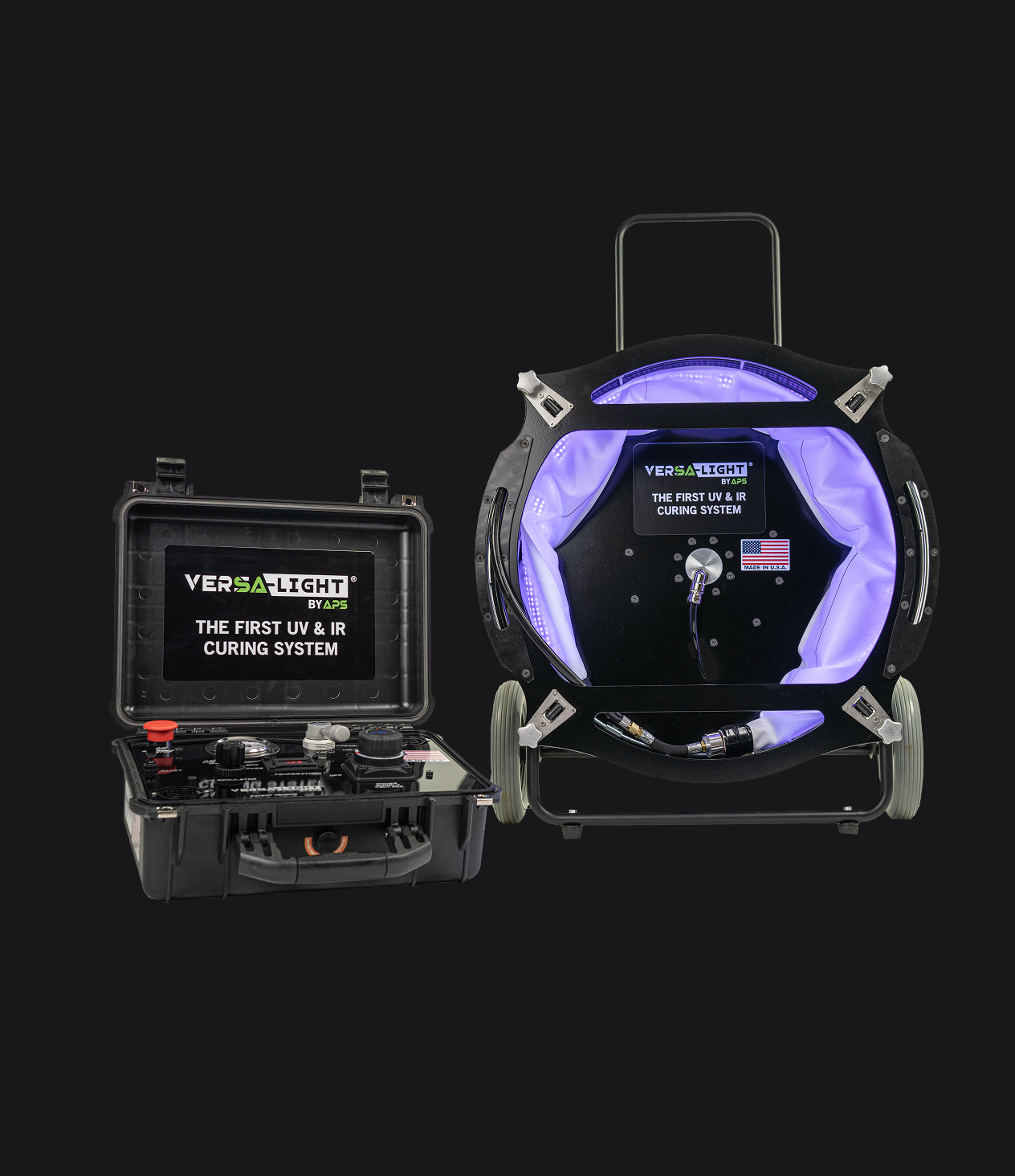

Versa-Light Dual Curing System

Versa-Light®

The only small-diameter curing system with both UV & IR

Versa-Light delivers a full, automated UV cure in just 10 minutes, or accelerates silicate and epoxy resins with IR for added flexibility. Designed for 2”-6” pipe and adaptable to any site condition, this cost-effective dual curing system is lightweight and portable enough to fit in a work truck or van. The Versa-Light brings professional-grade performance and versatility to every job.

  • IR accelerates silicate & epoxy resins
  • Repairs up to 30’ in 2”-6” pipes
  • UV cure and cool in 20 minutes
  • Easily fits in a work truck or van
Build Your Versa-Light System

Proven Performance in Small-Diameter Jobs

From residential basements to municipal laterals, Versa-Light adapts to the job with portability, speed and curing flexibility.

Commercial & Municipal Repairs

Versa-Light minimizes downtime with rapid curing in high traffic or critical infrastructure jobs.

Key Benefits:

  • Cures in a matter of minutes
  • Minimal equipment footprint
  • Works with a wide variety of APS resins

Specifications:

Application Type
Spot repair, small diameter lining
Common Use Cases
Commercial drains, municipal laterals
Versa-Light being used for commercial repairs

Residential & Tight Access Repairs

Large UV rigs aren't always practical in basements or residential properties. Versa-Light's compact design allows access anywhere.

Key Benefits:

  • Operates in confined spaces
  • No need for large volume air compressors
  • Quick setup in homes or basements

Specifications:

Application Type
Difficult to reach areas
Common Use Cases
Basements, crawlspaces, rooftops

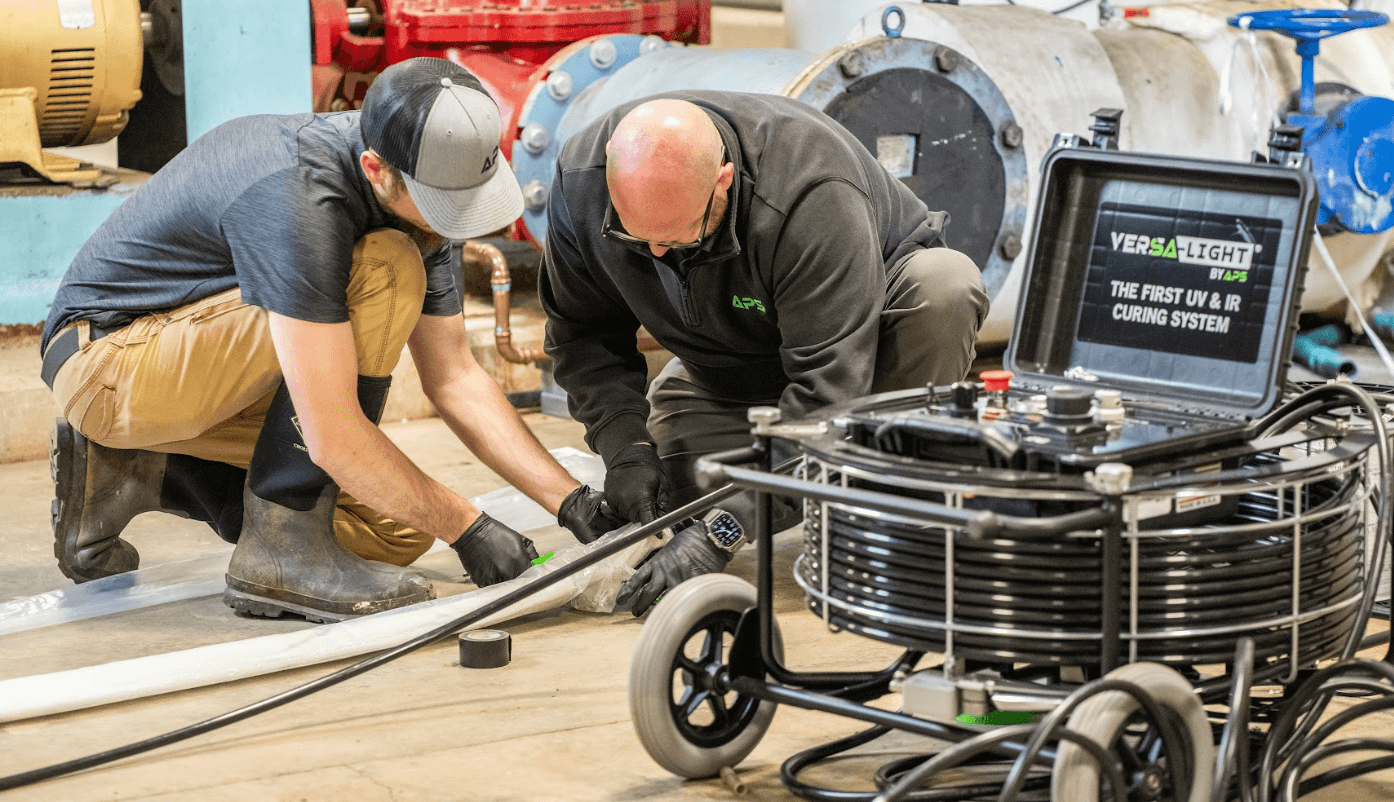

Versa-Light being used in residential tight access repair

Versa-Light Technical Specifications

Versa-Light Technical Technical Specifications
Light Bar Light Spectrum (UV or IR) Available Diameter Ranges* Minimum Compressor Requirement Power Source
4 FT Light Bar 3 FT Patch2"- 3" | 3"- 4" | 4"- 6"20-Gallon / 5-CFM120V AC
12 FT Light Bar 10 FT Patch2"- 3" | 3"- 4" | 4"- 6"20-Gallon / 5-CFM120V AC
32 FT Light Bar 30 FT Patch2"- 3" | 3"- 4" | 4"- 6"10 CFM120V AC
* 6-8 inch diameter options coming soon

Performance Specifications

Curing Process

UV Curing Time

10 minutes

UV Cooling Time

10 minutes

IR Curing Time

Dependent upon ambient conditions and resin selection

Installation Details

Pressure Range

35–40 PSI standard

Installation Methods

Push-in-place or pull-in-place

Setup Time

Ready to cure in under 10 minutes

*Versa-Light is designed to exclusively install APS approved materials.

Why Trenchless Pros Choose Versa-Light

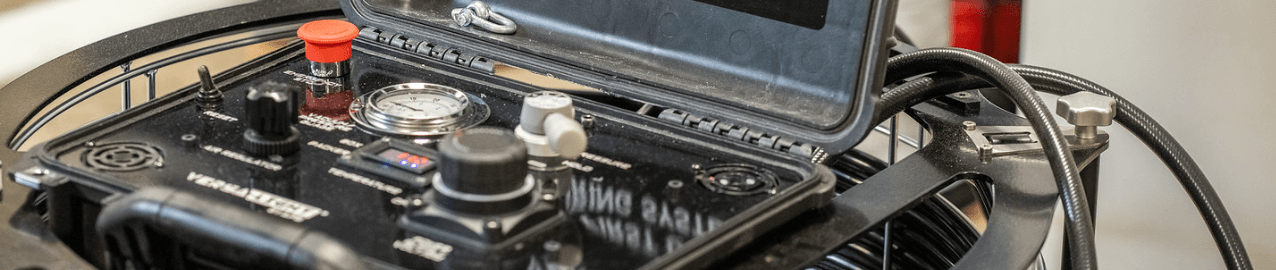

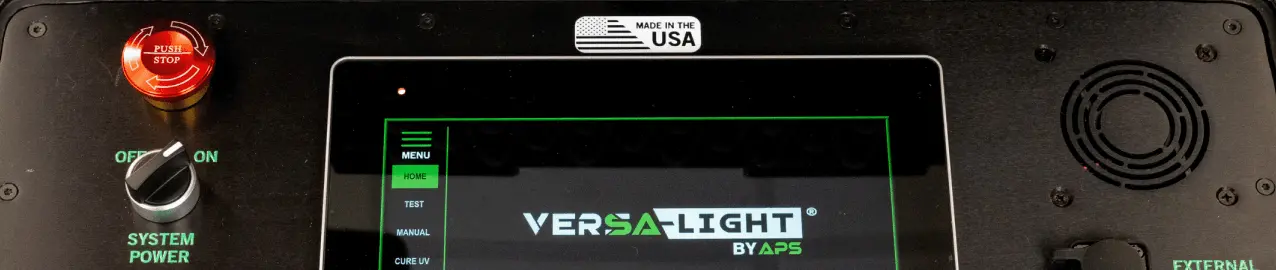

Versa-Light portable curing system

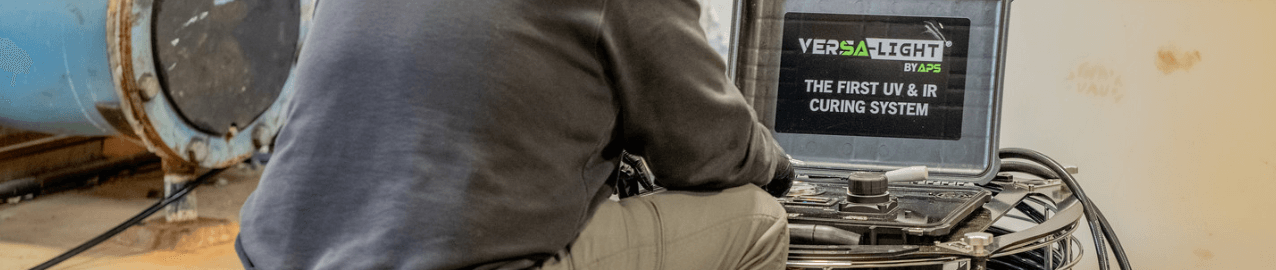

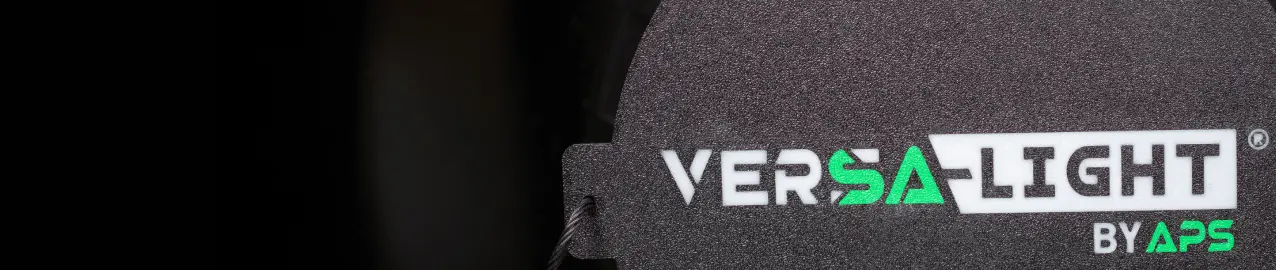

Versa-Light UV and IR curing technology

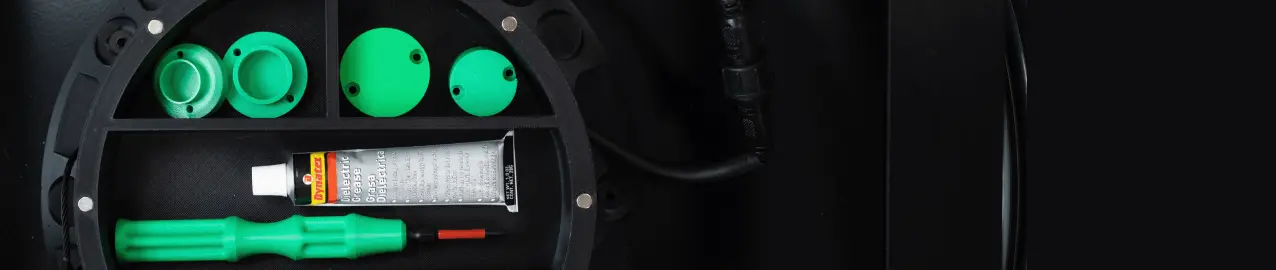

Versa-Light automated installation system

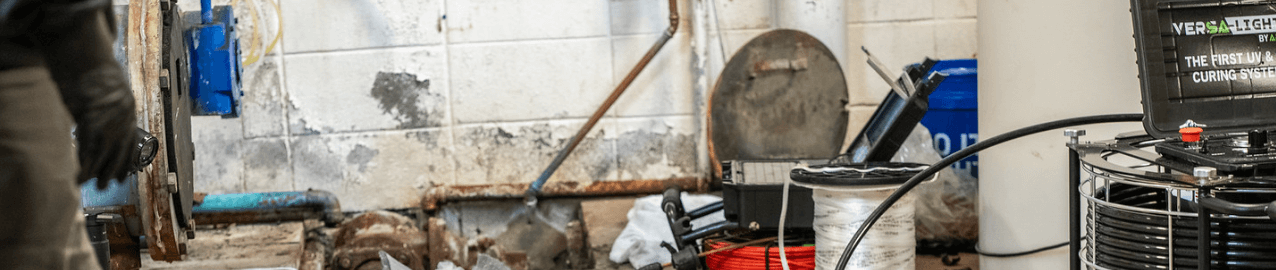

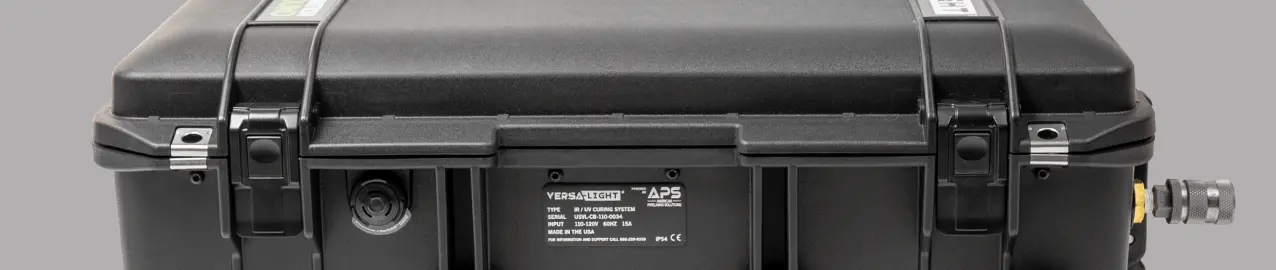

Versa-Light modular component system

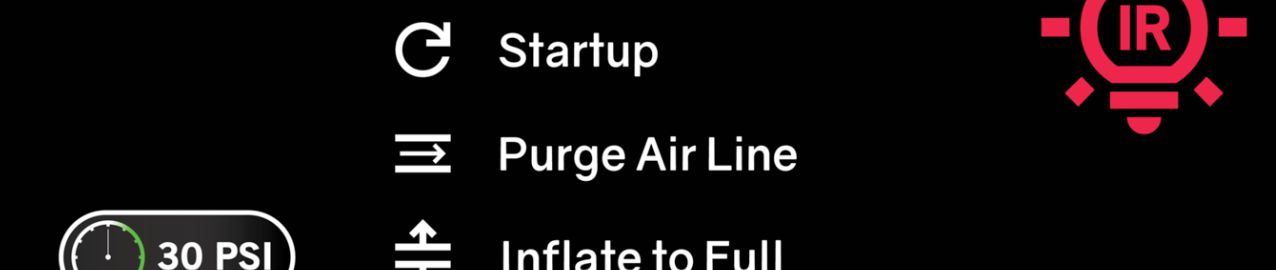

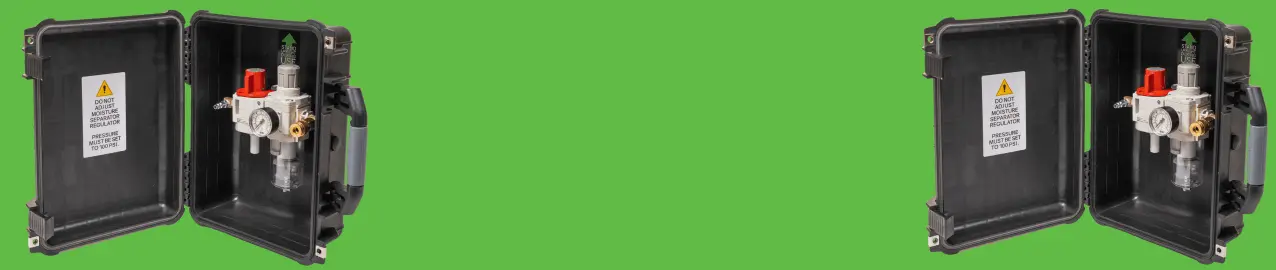

Versa-Light affordable curing solution

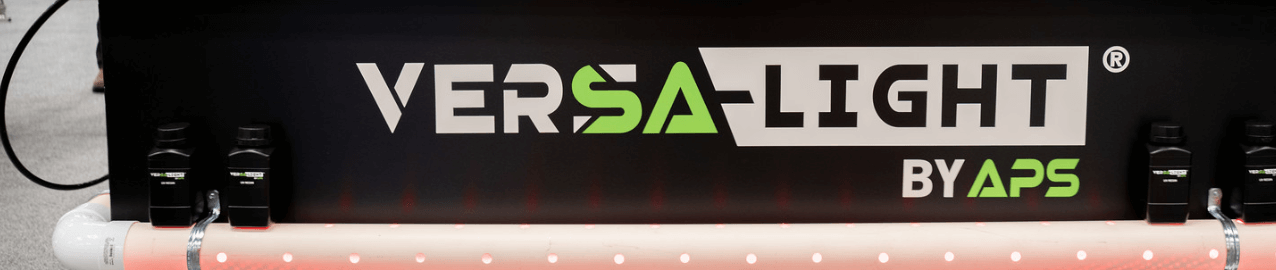

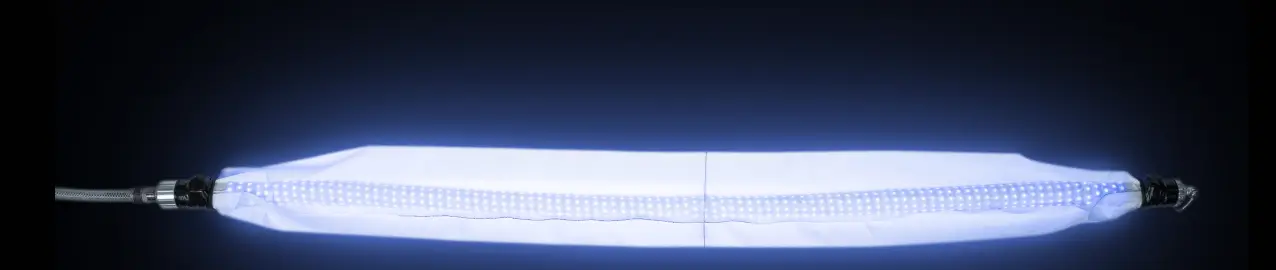

Versa-Light working in various pipe sizes

UV + IR in One System

Switch between UV curing for speed or IR curing for resin flexibility, giving you the freedom to use the method that best fits each job.

Portable Dual-Curing System

UV & IR Curing Made Simple

Traditional UV curing systems require trucks, trailers, and heavy investment. Versa-Light changes the game. Compact, portable, and powered by standard 120V, this system cures any UV installation in 10 minutes with an automatic 10 minute cool down cycle. The light bars deliver full light coverage and penetration, ensuring even cures across point repairs and liners. For jobs where crews want to stick with Versa-Patch silicate or Houseliner epoxy, IR curing adapts to site conditions like temperature and environment while maintaining reliability and shaving time off of the curing process.

Cure With Control

Versa-Light runs on standard 120V power and easily fits in a work truck or van. Its light bars deliver even cures in 10 minutes, while dual UV and IR curing options let contractors tackle any liner or patch with confidence, speed, and unmatched flexibility.

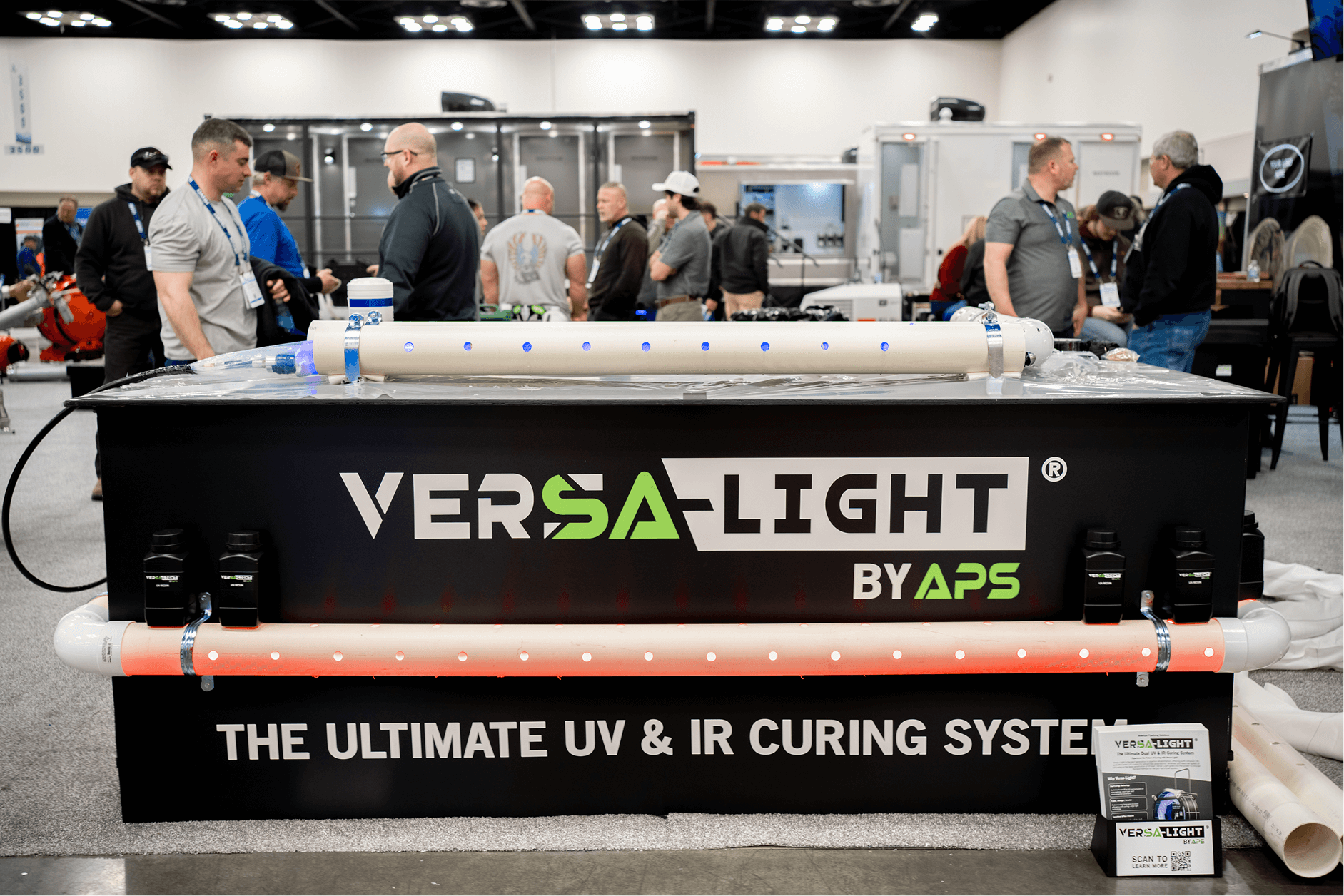

Versa-Light Control Panel

Versa-Light gives contractors the ability to take on a wide variety of jobs without being locked into a single curing method or setup. The system supports both push-in-place and pull-in-place installation methods, ensuring adaptability whether you’re working in residential laterals, commercial drains, or municipal laterals. Unlike bulky UV rigs that demand significant space and infrastructure, Versa-Light’s modular design and small footprint allow it to be deployed in basements, rooftops, or any tight-access environment. By removing logistical challenges and setup delays, Versa-Light helps crews work more efficiently and profitably.

  • Dual-Curing Flexibility. With Versa-Light, you’re never limited to one curing process. UV curing finishes every job in a guaranteed 10 minute cure, regardless of pipe size or length, with a precise 10 minute cool down cylce that locks in the repair and virtually eliminates shrinking. UV curing gives you rapid installation times and full control of working and prep time, heavily reducing the probability of irreparable mistakes, and allowing you to fully cure your patch or liner in minutes. When UV isn’t the right fit, infrared curing allows crews to continue using the APS exothermic resins they already know and trust, such as silicate or epoxy. This dual-curing flexibility ensures that installers can deliver consistent results no matter the job site.
  • Compact & Portable. Versa-Light was designed to deliver pro-level performance without the footprint of traditional UV systems. It runs on standard 120V power and operates with a simple compressor, eliminating the need for large air systems or specialized power sources. It’s control box and light bars are lightweight and easy to transport, making the system small enough to fit in the back of a truck or van, yet powerful enough for professional installations. This portability allows contractors to expand their services without investing in expensive vehicles or trailers.
  • Built for Installers. Every aspect of Versa-Light was engineered with the installer in mind. Automated inflate/deflate and curing cycles reduce operator error, while configurable hoses, reels, and packers give crews the tools they need to adapt on the fly. Whether you’re running a 3-foot patch in a residential lateral or a 30-foot liner in a small-diameter municipal main, Versa-Light is built to handle the job. By focusing on ease of use, reliability, and flexibility, APS delivers a system that makes installers more confident and more efficient in the field.

Backed by APS’s industry-leading training through APSTA and comprehensive after-sales support, Versa-Light is more than just a piece of equipment, it’s a long-term investment in your business. Contractors gain access to hands-on training, live technical support, and a U.S.-based repair center to keep their systems running smoothly. The system’s modular design means you can start small and scale as your business grows, adding additional light bars, hoses, or packers over time. By pairing affordability with professional-grade performance, Versa-Light makes trenchless UV curing practical for any contractor seeking to expand their services and increase profitability.

Affordable UV Curing for Every Contractor

Big trucks and oversized systems no longer define UV curing. Versa-Light delivers the same powerful results at a fraction of the cost and size, giving every contractor the ability to compete in the trenchless market. Whether you’re new to CIPP or expanding your existing services, Versa-Light combines UV speed and control, IR flexibility, and installer-focused design in one compact system. With APS training, support, and warranty coverage behind you, Versa-Light isn’t just an entry point into light assisted curing, it’s the smarter way forward.

Get a Quote For Versa-Light

Request a customized quote today

Trusted by CIPP & Trenchless Rehabilitation Experts

Discover why industry leaders in pipeline rehabilitation and sewer repair trust our cutting-edge solutions

Fort Wayne Pipelining LLC logo

"I’ve got six different high-speed cable machines. The only thing we use anymore is the Raptor Cutter from American Pipelining Solutions. It’s pricey, but you’ll never regret it."

Teren Petersen
Fort Wayne Pipelining LLC
American Rooter & Drain logo

"It absolutely has paid for itself. Even just a little bit of increased efficiency makes all the difference in the world in terms of saving time. So in that regard, this has been a really good unit. We’d definitely buy another one. In fact, I need to phase out another machine, so we’re thinking about buying another Raptor within the next few months."

David DeMayola
American Rooter & Drain
FH Furr logo

"Best school to attend to learn pipe lining. Chris, the trainer, is super knowledgeable and will make sure you aren't leaving until you are comfortable and know what you're doing. Leaving here super confident and set up for success."

Michael Carrano
FH Furr
Colonial Webb logo

"I had an absolute blast attending the week-long class last week. The instructor, Chris, was top notch and super thorough in his training. We appreciate the knowledge, lunch, and all the laughs."

Brian Charles
Colonial Webb
Champion AC & Plumbing logo

"I'll keep this short and sweet. Great experience all around - training, facilities, technology, products and much more. I want to highlight Chris Dean, willing to answer questions at 8pm in the evening on his day off, providing guidance and answers to help you get the job done. 5 stars all day long!"

Matej Bzdil
Champion AC & Plumbing
Pither Plumbing logo

"The APS crew is killing the game. Supply, training, on-the-job support - total package. Great company. Great people. APS will help you to take your business to the next level if you want it."

Patrick Pither
Pither Plumbing
Air Comfort Solutions logo

"I had zero lining experience before attending the APS class, and within a month, I became extremely comfortable running a trailer. Chris and APS earn 5 stars for their professionalism, detailed instruction, and unwavering support even after the class. 100% recommend investing in this company—they've truly mastered their craft."

Tanner Watson
Air Comfort Solutions
Champion AC & Plumbing logo

"First off, the training they offer is incredible! The facility has everything you need to learn about this extremely specialized technology, and the instructors are the best in the country! Chris Dean is an absolute guru. His patience and knowledge is something that I cannot thank him enough for."

James Farr
Champion AC & Plumbing
FH Furr logo

"Absolutely worth the 5 stars, learned so much in just a week! 👍🏻👍🏻👍🏻"

Brandon Koch
FH Furr
J Blanton Plumbing logo

"Chris Dean did an amazing job training my team! Amazing product! APS is a fantastic company, best in the business."

Kyle Dooley
J Blanton Plumbing
Air Comfort Solutions logo

"Had a great experience here in Anderson, SC. The trainer Chris is a world-class guy. I feel very confident going back to OKC and applying what I learned here."

Shane Lane
Air Comfort Solutions

Related Blog Posts

Learn more about the Versa-Light and how it can benefit your business

  • A Guide to APS's Trenchless Technology Certifications

    A Guide to APS's Trenchless Technology Certifications

    APS training helps beginners and pros master pipeline rehab. Advance your career and build real-world trenchless skills.

  • The Longevity of CIPP Trenchless Pipe Repairs: A Closer Look at ASTM Standards

    The Longevity of CIPP Trenchless Pipe Repairs: A Closer Look at ASTM Standards

    Ensure the quality and longevity of CIPP repairs by adhering to the stringent standards set by ASTM International.

  • Revolutionizing Pipeline Repair with the Power of Trenchless Technology

    Revolutionizing Pipeline Repair with the Power of Trenchless Technology

    Expand your plumbing business in 2025 with CIPP trenchless pipe repair — boost growth, profits, and long-term success through innovative no-dig rehabilitation.

Frequently Asked Questions

2"-8" diameters.

No, however a 20 gallon compressor is ideal.

Yes especially with IR curing.

Yes. It also has manual override options.

Yes, the system is fully modular.

It is very portable. It even fits in the trunk of a car.

Uv and IR are the two curing methods available.

The curing for UV is 15-20 minutes.

Yes we do, through out APSTA program.

Yes. APS provides warranty and support for all Versa-Light components.
