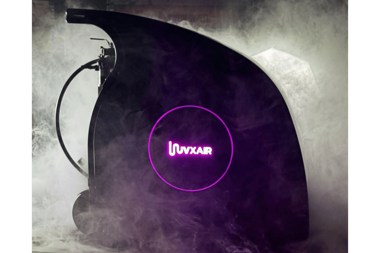

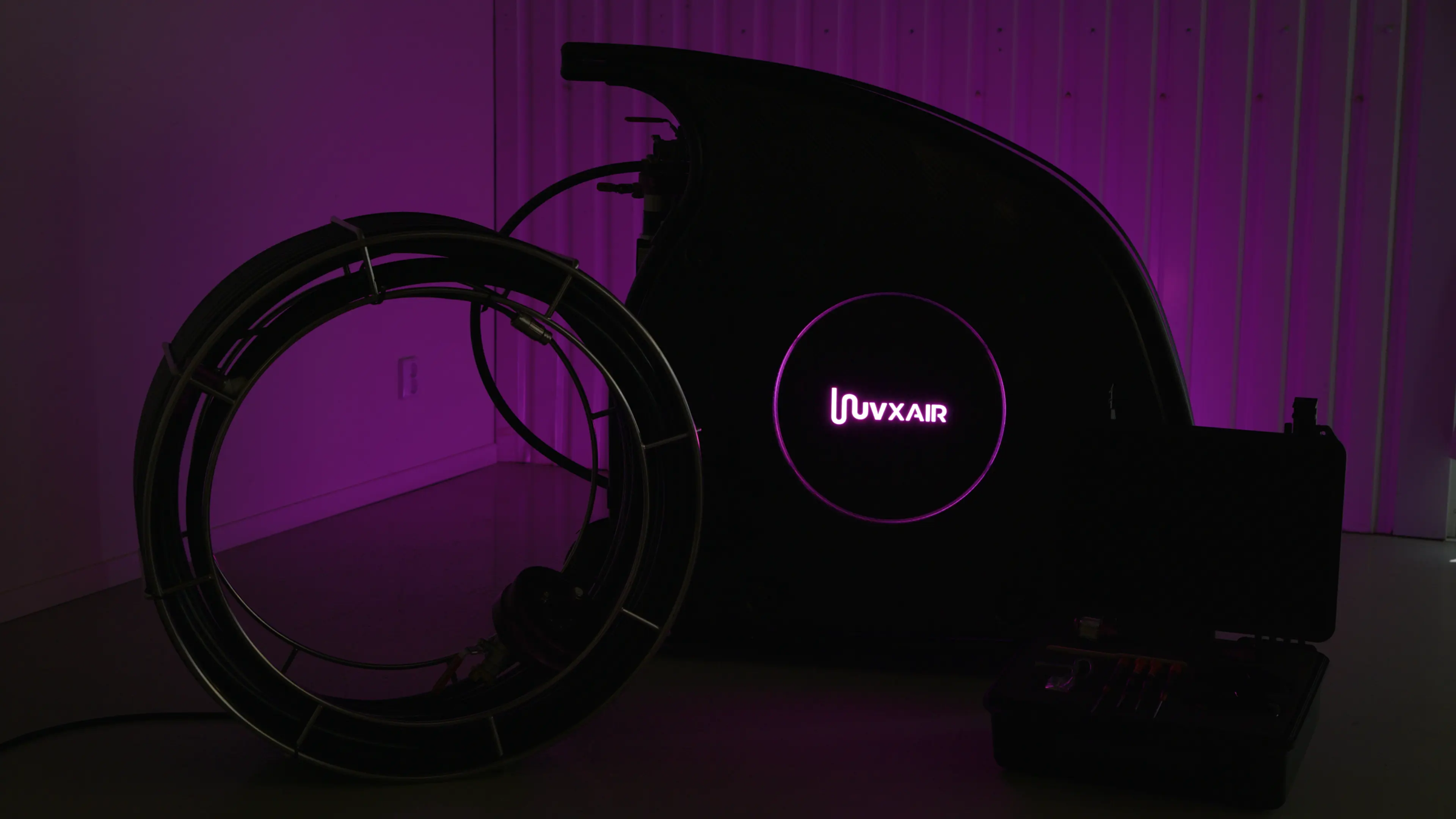

UV XAIR
Powerful UV Curing Without the Complexity
One UV system. One light head. Cure 3″–24″ (DN70–DN600) with a compact, lateral-focused platform designed to make installs smoother, training easier, and long-term ownership far more affordable.
- One light head covers 3″–24″
- Navigates 90-degree lateral bends
- Cures up to ~330 ft/hr in 4″
- Live speed and temperature tracking
- Lower cost of long-term ownership
- Guided tablet interface with reports }
Get the UV XAIR System Spec Flyer
Enter your email to gain access to specifications and tooling insights for the UV XAIR
UV XAIR Applications
UV XAIR is built for real-world lateral curing, giving contractors a single UV system that handles tight bends, wide diameter ranges, and fast, controlled installs without the cost or complexity of traditional platforms.

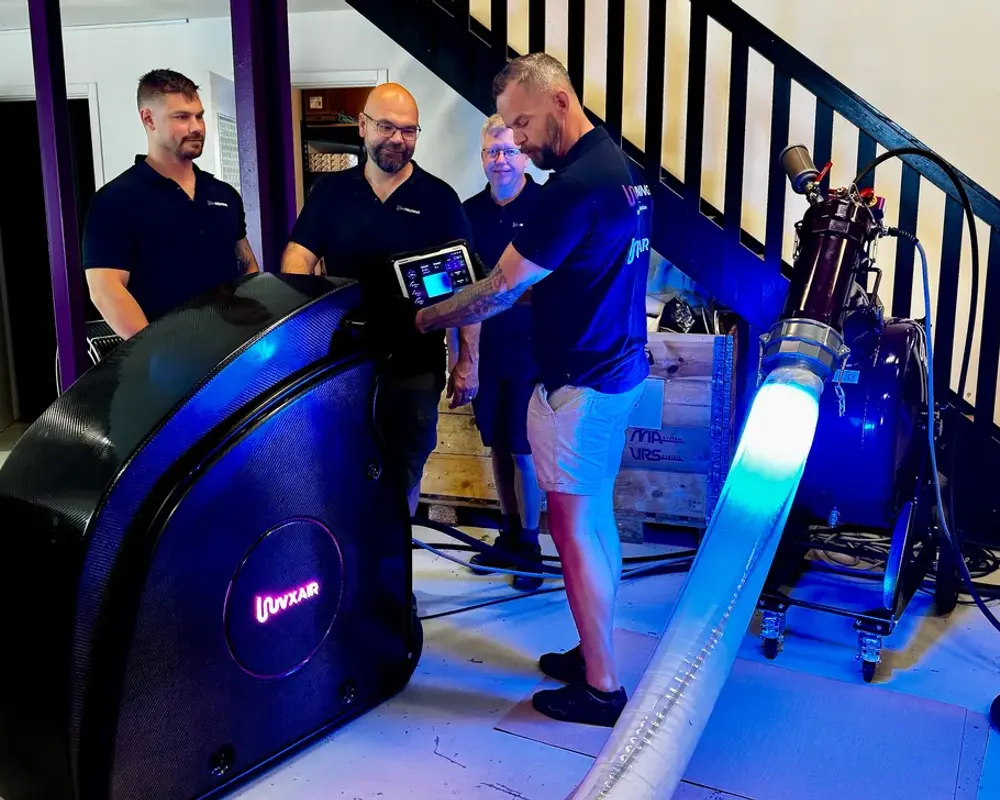

Lateral and Service Line Curing
UV XAIR is purpose-built for lateral relining, covering the most common service line diameters with a compact, installer-friendly design that simplifies everyday jobs.
Key Benefits:
- Ideal for 3″–12″ felt liner installs
- Fiberglass required from 12″–24″
- Designed for smooth crew workflow
Specifications:

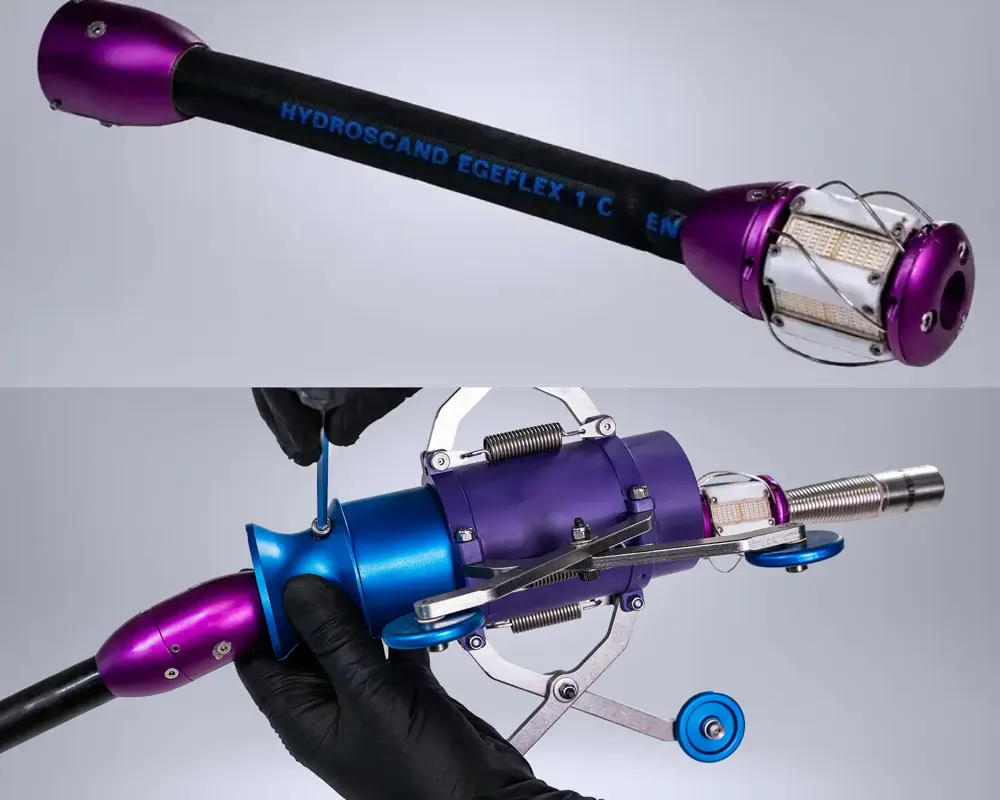

Single Head Versatility Up to 24″
Most UV systems require multiple light heads and constant changeovers. UV XAIR eliminates that complexity with one UV head capable of curing pipe sizes all the way up to 24 inches.
Key Benefits:
- Ideal for 3″–12″ felt liner installs
- Fiberglass required from 12″–24″
- Faster workflow, lower cost of ownership
Specifications:

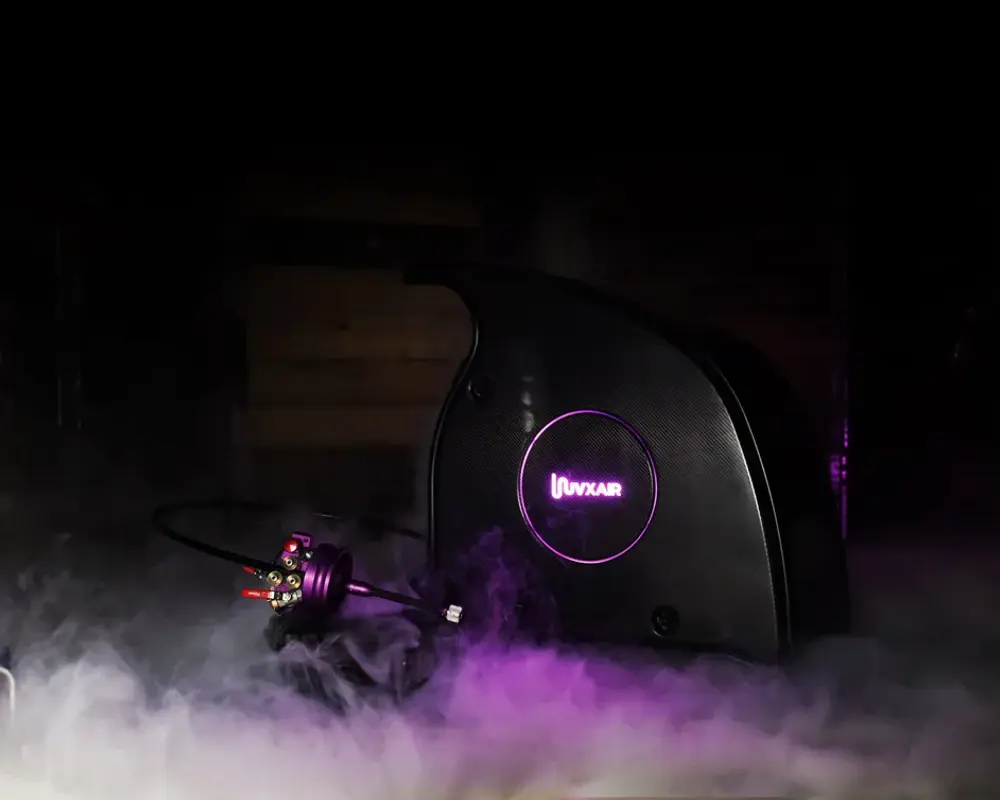

Tight Bends and Transitions
Real lateral work rarely comes in perfectly straight lines. UV XAIR is capable of navigating tight 90-degree bends in 3-inch pipe, making it a true lateral-focused solution.
Key Benefits:
- Handles 90-degree bends in 3″ pipe
- Built for Laterals and branch lines
- Tight bends and transitions
Specifications:

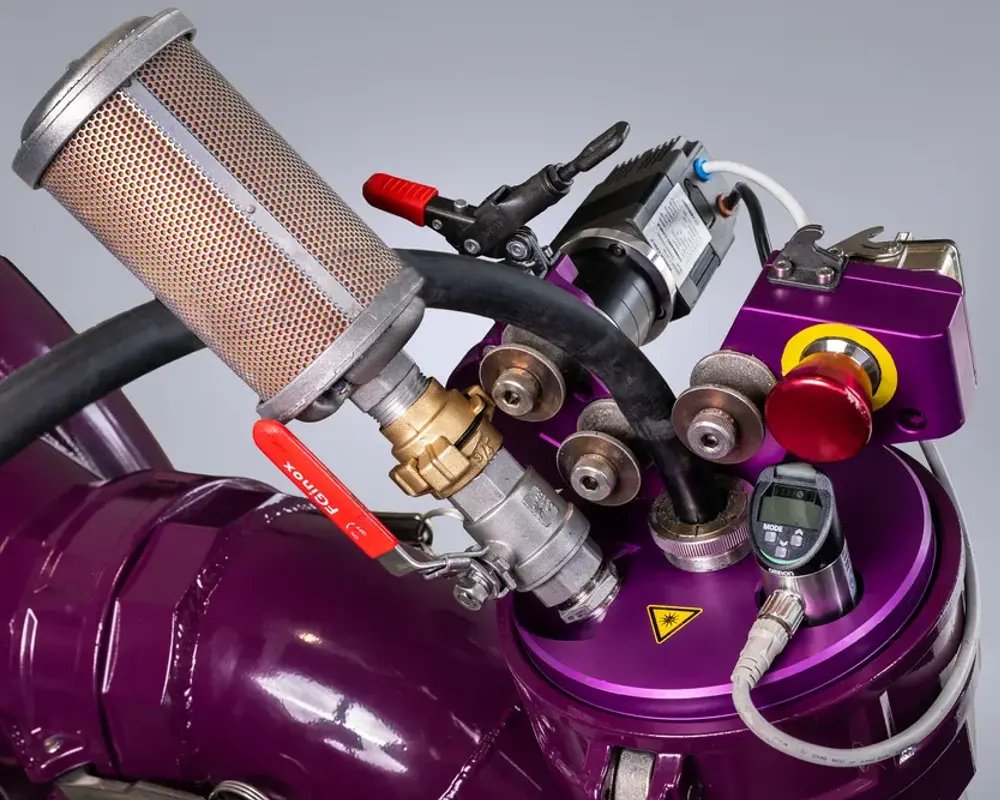

Fast, Controlled UV Curing
Cure with confidence using real-time control over speed, pressure, and temperature. UV XAIR delivers consistent results with cure speeds reaching up to ~330 ft/hr in 4-inch pipe.
Key Benefits:
- Cure speeds up to ~330 ft/hr
- Live monitoring of key parameters
- Consistent installs across crews
Specifications:

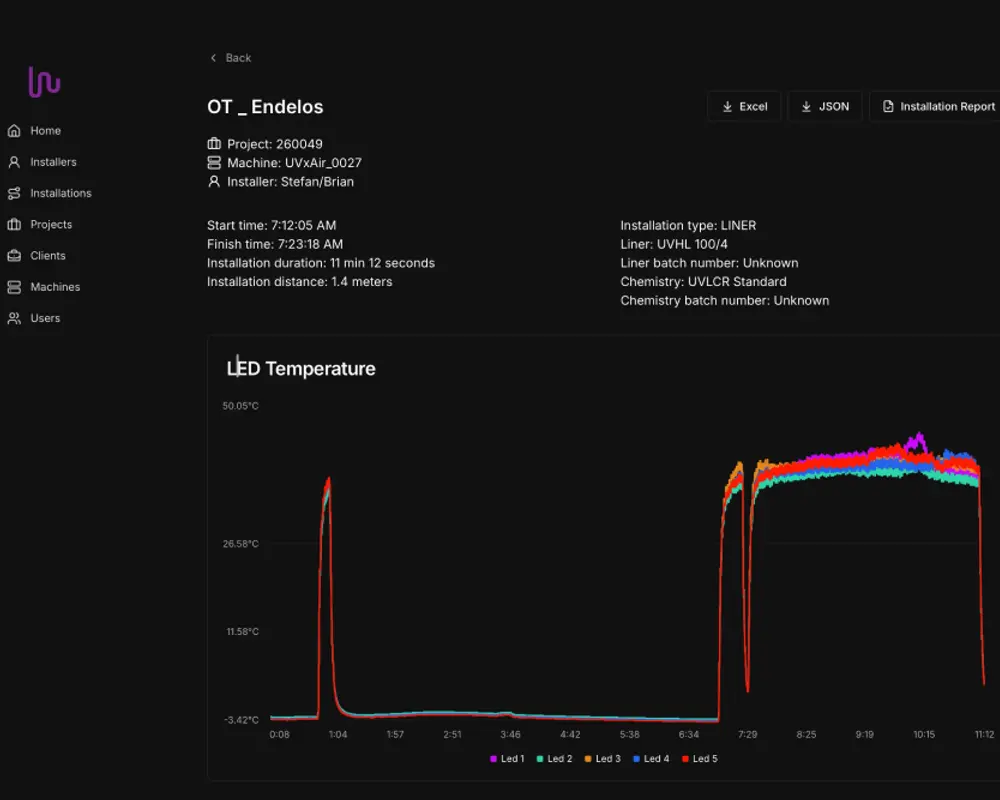

Built-In Docs and Reporting
UV XAIR automatically records cure data and generates a clear end-of-job summary including the installation video. Integrated camera inspection and reporting support quality control and customer confidence.
Key Benefits:
- Automatic installation recording
- Integrated camera inspection
- Job summaries for QC and clients
Specifications:

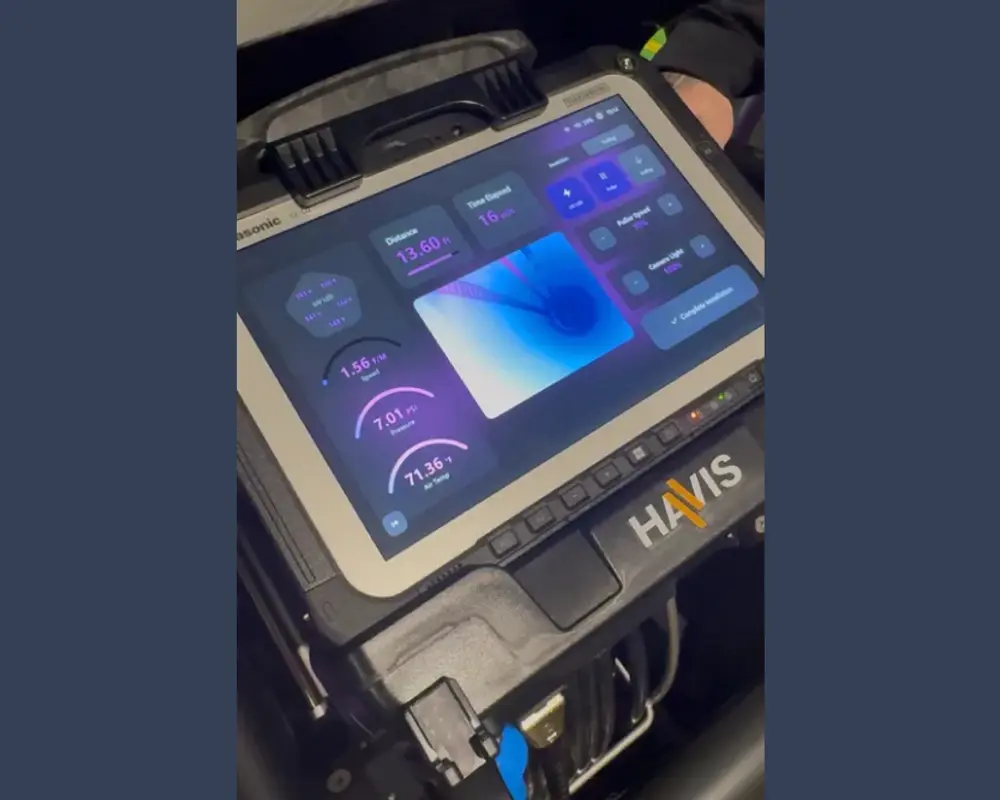

Quality Control and Safety Compliance
UV XAIR includes built-in safety features and quality control checks to ensure consistent, reliable installations. The system monitors all critical parameters and provides real-time alerts for any deviations.
Key Benefits:
- Real-time parameter monitoring
- Live installation viewing
- Quality assurance documentation
Specifications:
LOWER COST OF OWNERSHIP
Built to Save You Money Long After the Purchase

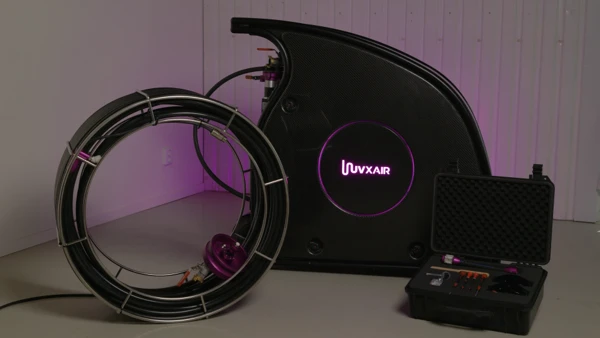

One Light Head.
A single UV light head covers 3″–24″ (DN70–DN600), eliminating the need for multiple heads and excess inventory.
Fewer parts to manage. The system purchase comes with an additional light head and pushrod.
Field-Ready Protection.
Designed to be field repairable in real-world conditions in the case of unforeseen damage.

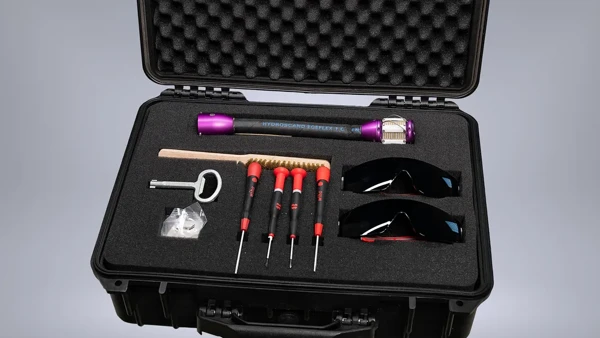

The reversible pushrod lets crews flip direction after a kink and often finish the job without delay.

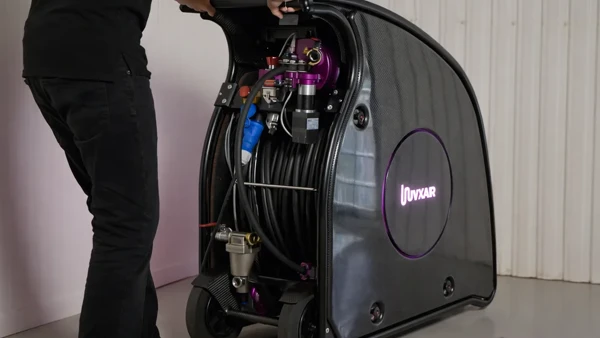

Field-Repairable Design.
Components are designed to be field-serviceable with no factory returns required.
That means more predictable service costs and minimal downtime if a part ever needs attention.

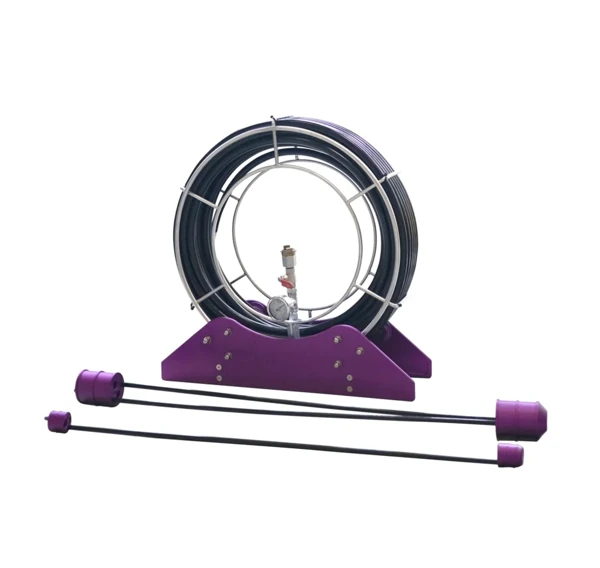

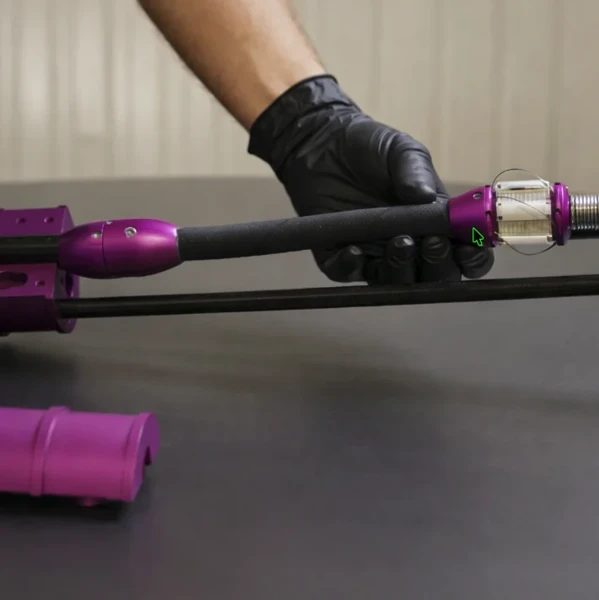

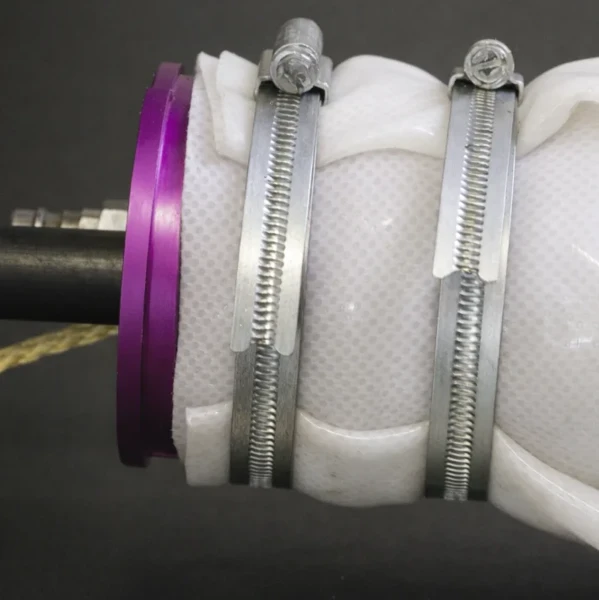

T-liner & Patching System
Expand your UV XAIR capabilities beyond mainline installations. The T-Liner & Patching System enables efficient T-liner installations and UV-cured patch work — all using the same curing system.
- Seamless UV Integration
- Works effortlessly with UV Relining's Light Curing Systems for both T-liner and patch installations — no additional curing equipment needed.
- Fast and Reliable Curing
- UV curing technology drastically reduces T-liner and patch installation time, ensuring minimal disruption to sewer operations.

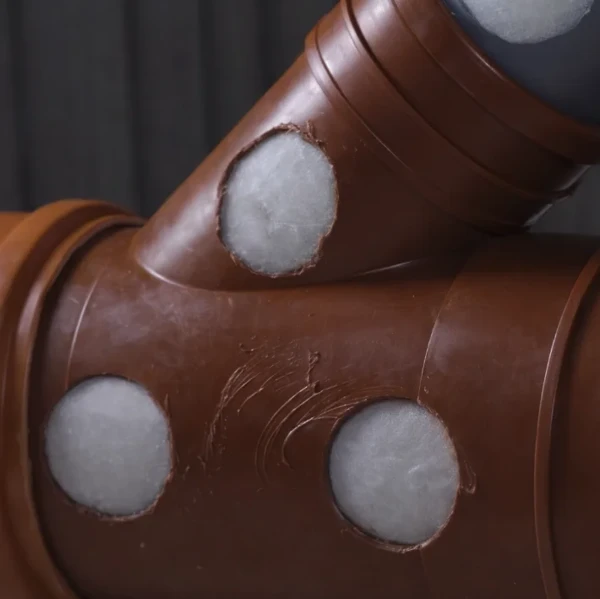

- T and Y Junctions
- Designed for junctions with dimensions ranging from DN70 to DN300, providing broad compatibility.
- Effortless Alignment
- Engineered for precision, making positioning quick and simple.
- Minimal Waste, Maximum Efficiency
- UV curing resin ensures material efficiency, reducing excess usage and costs.
- Dual-Function Capability
- Quickly converts from T-liner mode to UV patch mode with a simple modification, covering patch lengths of up to 10 Feet.

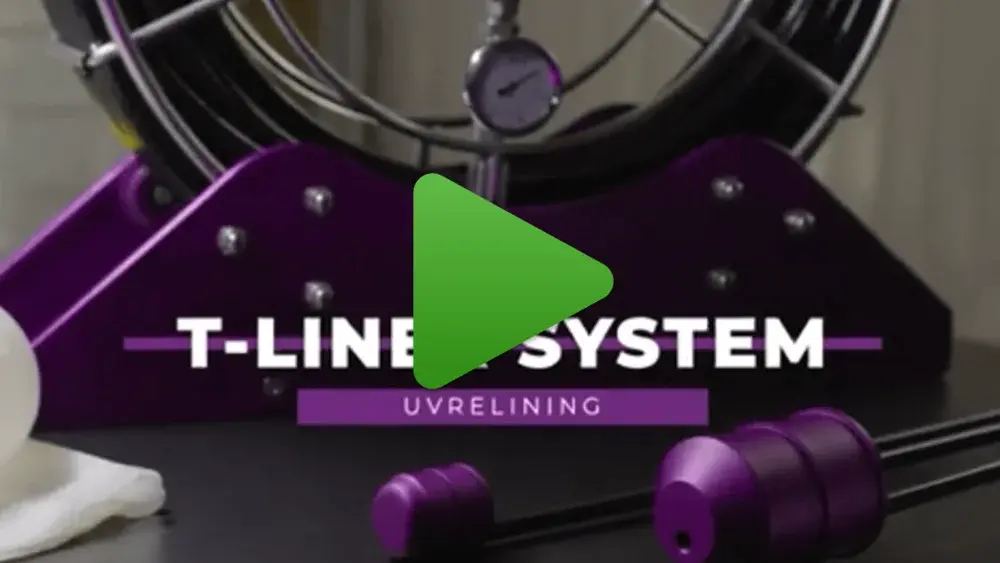

See the T-Liner & Patching System in Action
Watch how the T-Liner & Patching System integrates with UV XAIR to deliver fast, precise T-liner installations and UV-cured patch work.

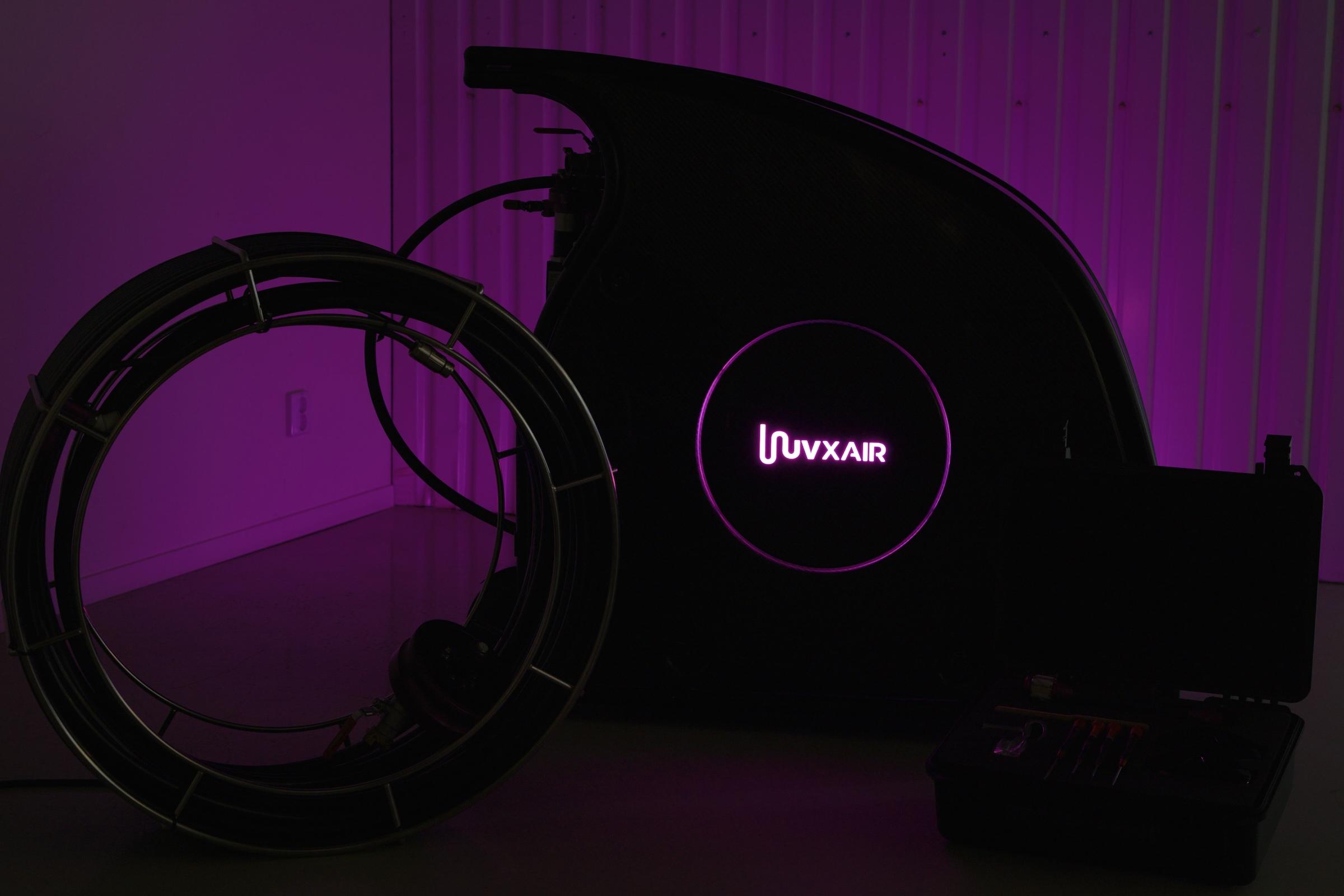

One System. Real Versatility.
Powerful UV Curing Without the Complexity
UV XAIR delivers controlled, lateral-focused UV curing with a single light head designed to cover 3″–24″ (DN70–DN600). Install faster, train crews easier, and reduce long-term ownership costs.

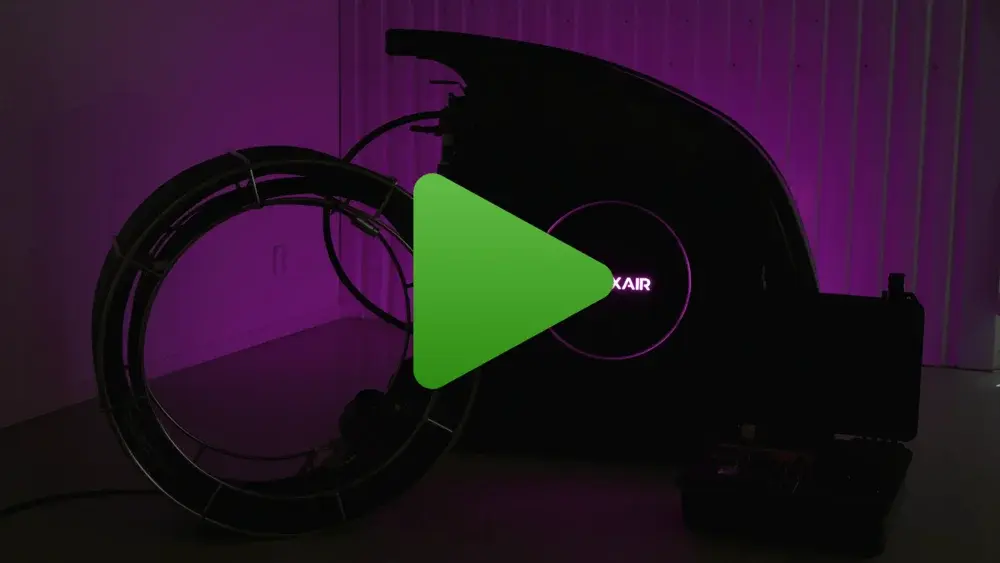

See UV XAIR in Action
“UV XAIR simplifies UV curing with one light head, real-time control, and built-in documentation. Designed for lateral installs, it delivers fast, consistent cures without the complexity of traditional systems.”
Most UV systems are overbuilt, expensive to maintain, and require multiple light heads to cover different pipe sizes. UV XAIR takes a smarter approach, combining wide diameter capability, tight bend navigation, and installer-friendly operation in one compact platform built for real jobsite conditions.
- One Light Head. Fewer Headaches. A single UV light head is designed to cure pipes from 3″ through 24″ (DN70–DN600), eliminating changeovers, reducing inventory, and making it easier to move between jobs with less equipment to manage.
- Fast, Controlled Curing You Can Trust. Cure speeds can reach up to ~330 ft/hr (100 m/hr) in 4″ (DN100), with real-time tracking of speed, temperature, pressure, and distance. Integrated camera support for light head positioning and cure monitoring, along with automated summaries, makes quality control simple.
- Lower Cost of Ownership Built In. UV XAIR is built with affordable, field-repairable components and simplified service in mind. A reversible umbilical provides added protection in the field, while lower-cost parts help reduce long-term operating costs and keep downtime to a minimum.
Supported by American Pipelining Solutions, UV XAIR comes with hands-on training, technical resources, and long-term service support. From setup through curing and documentation, the system is engineered to protect your investment and help crews deliver consistent installs with confidence.
Designed for Laterals. Built for the Real World.
UV XAIR gives trenchless contractors a compact, versatile UV curing system that is easier to operate, more affordable to own, and capable of handling the lateral conditions crews face every day. One head, wide coverage, and documentation built in.
Request A Quote or More Information About the UV XAIR
Fill out the form below, and we'll get back to you within 1 Business Day.
Trusted by CIPP & Trenchless Rehabilitation Experts
Discover why industry leaders in pipeline rehabilitation and sewer repair trust our cutting-edge solutions
"I’ve got six different high-speed cable machines. The only thing we use anymore is the Raptor Cutter from American Pipelining Solutions. It’s pricey, but you’ll never regret it."
"It absolutely has paid for itself. Even just a little bit of increased efficiency makes all the difference in the world in terms of saving time. So in that regard, this has been a really good unit. We’d definitely buy another one. In fact, I need to phase out another machine, so we’re thinking about buying another Raptor within the next few months."
"Best school to attend to learn pipe lining. Chris, the trainer, is super knowledgeable and will make sure you aren't leaving until you are comfortable and know what you're doing. Leaving here super confident and set up for success."
"I had an absolute blast attending the week-long class last week. The instructor, Chris, was top notch and super thorough in his training. We appreciate the knowledge, lunch, and all the laughs."
"I'll keep this short and sweet. Great experience all around - training, facilities, technology, products and much more. I want to highlight Chris Dean, willing to answer questions at 8pm in the evening on his day off, providing guidance and answers to help you get the job done. 5 stars all day long!"
"The APS crew is killing the game. Supply, training, on-the-job support - total package. Great company. Great people. APS will help you to take your business to the next level if you want it."
"I had zero lining experience before attending the APS class, and within a month, I became extremely comfortable running a trailer. Chris and APS earn 5 stars for their professionalism, detailed instruction, and unwavering support even after the class. 100% recommend investing in this company—they've truly mastered their craft."
"First off, the training they offer is incredible! The facility has everything you need to learn about this extremely specialized technology, and the instructors are the best in the country! Chris Dean is an absolute guru. His patience and knowledge is something that I cannot thank him enough for."
"Absolutely worth the 5 stars, learned so much in just a week! 👍🏻👍🏻👍🏻"
"Chris Dean did an amazing job training my team! Amazing product! APS is a fantastic company, best in the business."
"Had a great experience here in Anderson, SC. The trainer Chris is a world-class guy. I feel very confident going back to OKC and applying what I learned here."
Frequently Asked Questions
The system is designed for lateral and service line relining across a wide diameter range. UV XAIR is capable of curing pipes from 3″–24″ (DN70–DN600) using a single UV light head, covering most lateral and service line work without swapping heads or carrying additional curing hardware. The UV Relining system is developed for renovating wastewater pipes in dimensions from 100mm to 250mm. This flexibility allows contractors to handle typical lateral applications while also accommodating larger diameters when required.
The system is suitable for relining all common wastewater pipe materials. The material of the existing installation does not matter, since a new pipe with its own structural integrity is created inside the old pipe. This makes the system suitable for use in pipes made of concrete, iron, plastic, and similar materials.
The system is purpose-built for laterals and service lines, with the flexibility to handle larger diameters when needed. It is ideal for contractors who want precision, maneuverability, and efficiency rather than oversized systems designed for long mainline runs.
The system is designed to handle challenging real-world pipe geometry. It is capable of navigating multiple 90-degree bends, even in 100mm (4″) pipes. UV XAIR can navigate 3″ (DN70) 90-degree bends, making it well-suited for tight lateral conditions where access and alignment are not ideal. This capability is enabled by the design and construction of the pushrod and light head.
Cure speed depends on pipe diameter, liner thickness, and job conditions. UV XAIR can reach cure speeds of up to approximately 330 ft/hr (100 m/hr) in 4″ (DN100) pipe. The UV Relining system typically cures at speeds of 30–40 meters per hour when installing a 150mm liner. Compared to traditional epoxy resin systems, UV relining solutions can be between two and five times faster. Installers can control speed, pressure, and temperature in real time to ensure consistent results.
After a completed renovation, the pipe regains its static load-bearing capacity, waterproof integrity, and a smooth internal surface comparable to installing a new pipe through excavation and replacement. The finished liner forms a new structurally independent pipe inside the existing host pipe.
The finished installation can achieve a strength increase of approximately 40–100% compared to the original pipe, depending on application and liner configuration. The relined pipe provides long-term structural performance suitable for wastewater applications.
An installation completed with the UV relining system has an expected lifespan of approximately 50 years.
The system is designed to be intuitive and easy to operate. A touch screen or tablet-based interface guides installers through setup, inversion, and curing. This reduces training time and helps ensure consistent results across crews. Hands-on training and ongoing support are also provided.
The system automatically documents the entire installation process. Recorded data includes video feed, curing speed, temperature, pressure, distance, installation settings, and time. Documentation is stored on removable media such as a Compact Flash memory card, and a clear summary is generated at the end of each installation to support quality control, reporting, and customer confidence.
No. The integrated video feed is used to locate the light head inside the liner during insertion, inspect the liner before curing, and document the curing process for quality control purposes. It is not intended to replace a dedicated inspection camera.
Yes. Liner impregnation can be performed at the job site. However, the procedure must take place in a UV-protected environment to prevent premature curing.
No. Installation without a preliner is possible. Due to the construction of the liner and the chemistry used, there is no excess resin that risks flowing into connecting pipes. The chemistry is not affected by contact with water, making installation without a preliner safe.
Yes. The chemistry used in the liner is not affected by contact with water, making it possible to install the liner without a preliner even in pressing groundwater conditions.
Yes. Open-end installation can be performed by closing the end of the liner and cutting it off after curing, or by using a transparent calibration hose or a glue-end. The use of a calibration hose or glue-end is recommended.
During liner inversion, pressure typically ranges between 0.2 and 0.4 bar. During installation and curing, pressure is generally around 0.4 bar.
The system operates on a standard 220V, 10A power supply. Compressor requirements are approximately 1000 liters per minute at 6–8 bar. A minimum 3/4-inch air hose is recommended. Mist lubricators should not be used. In hot environments above 25°C, an air cooler is recommended to increase LED panel lifespan. An air dryer is not essential but is recommended.
UV XAIR is built with affordable, field-repairable components. Key parts like the light head and umbilical are designed so contractors can service them on-site if needed — without waiting on factory support or expensive replacements.
The pushrod length is 70 meters. By using two units simultaneously and curing from both ends, the installation length can be doubled.
Yes. The liner can expand by up to 50%, allowing transitions such as from 100mm to 150mm or from 150mm to 225mm in a single installation.
The system enables faster and more profitable installations through high curing speeds and efficient workflows. It uses a one-component chemistry that reduces stress and waste. It can navigate multiple 90-degree bends, provides automatic documentation, delivers a stronger end result, features affordable and field-repairable components, and includes an easy-to-use touch screen interface designed for real-world jobsite efficiency.
