Sewertronics SpeedyLight UV Curing Systems
Ultimate control over how you rehabilitate lateral, mainline, and vertical CIPP
Models like the VX and SpeedyLight+ give contractors predictable cure times. Less rushing against resin, and more planning the workday with accuracy and confidence.
- Predictable cure times
- Cures in minutes
- Complete control over working time
- Interchangeable SpectraLight® heads
Applications of SpeedyLight Systems
SpeedyLight systems adapt to a wide range of trenchless rehabilitation projects, from residential laterals to multi-story vertical stacks. With the ability to pause until you’re ready to cure, crews work at their own pace and deliver higher quality results.

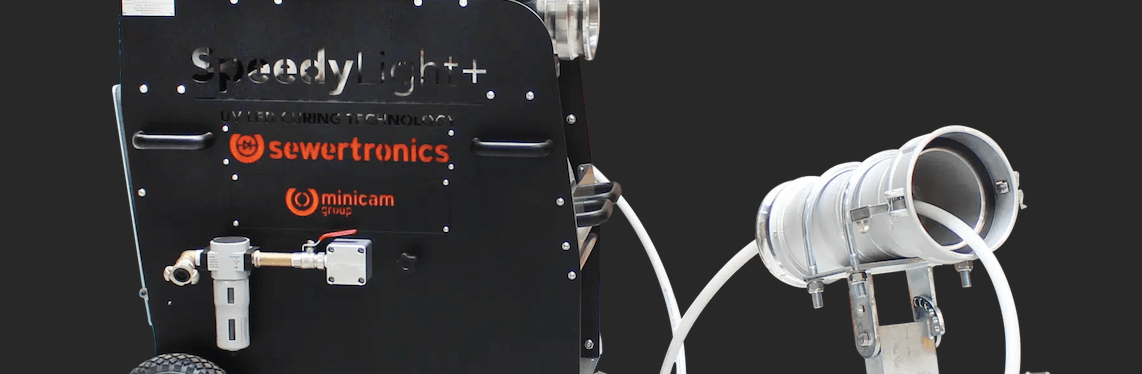

Lateral & Mainline Rehabilitation (SpeedyLight+)
SpeedyLight+ excels in horizontal and mainline pipe rehabilitation, providing unmatched flexibility for DN70-600 (3”-24”) pipes. Crews can stage, inspect, and double-check every step before triggering a cure.
Key Benefits:
- Cure on your schedule
- Cures in minutes, hot hours
- Easily Navigates Bends with Correct Head Configuration
Specifications:

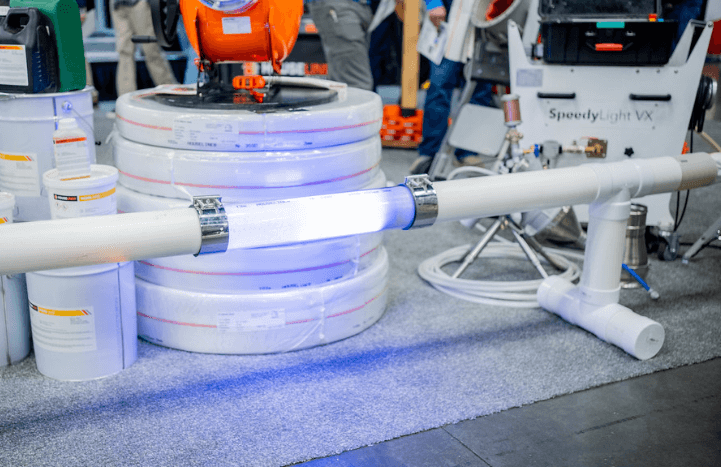

Vertical & In-House Connections (SpeedyLight VX)
SpeedyLight VX is optimized for vertical curing in multi-story and in-house applications thanks to its smaller form factor, flexible pushrod, and compact light heads. It gives installers full control over working time, allowing adjustments to match complex setups—reducing delays and rework while increasing confidence on every install.
Key Benefits:
- Virtually unlimited working time
- Ideal for in-house repairs
- Perfect for risers and vertical stacks
Specifications:
Cure On Your Schedule
With UV Curing, your working time isn’t dictated by the resin pot life. Crews can work at their own pace, reducing errors and consistently delivering high-quality, approved results.
Key Benefits:
- Endless working time until activation
- Precision curing with integrated CCTV camera
- Fewer mistakes, higher success rate
Specifications:
SpeedyLight Specifications

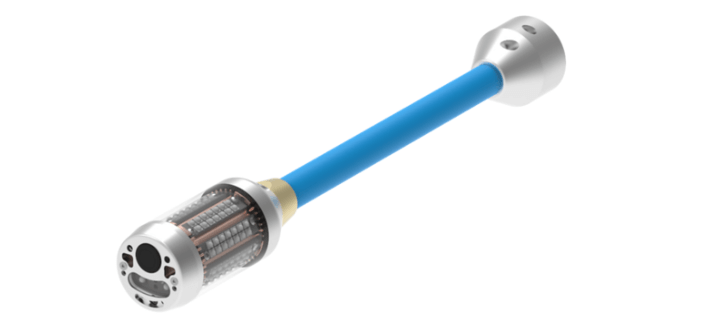

Spectra Light Family | UV Curing Heads

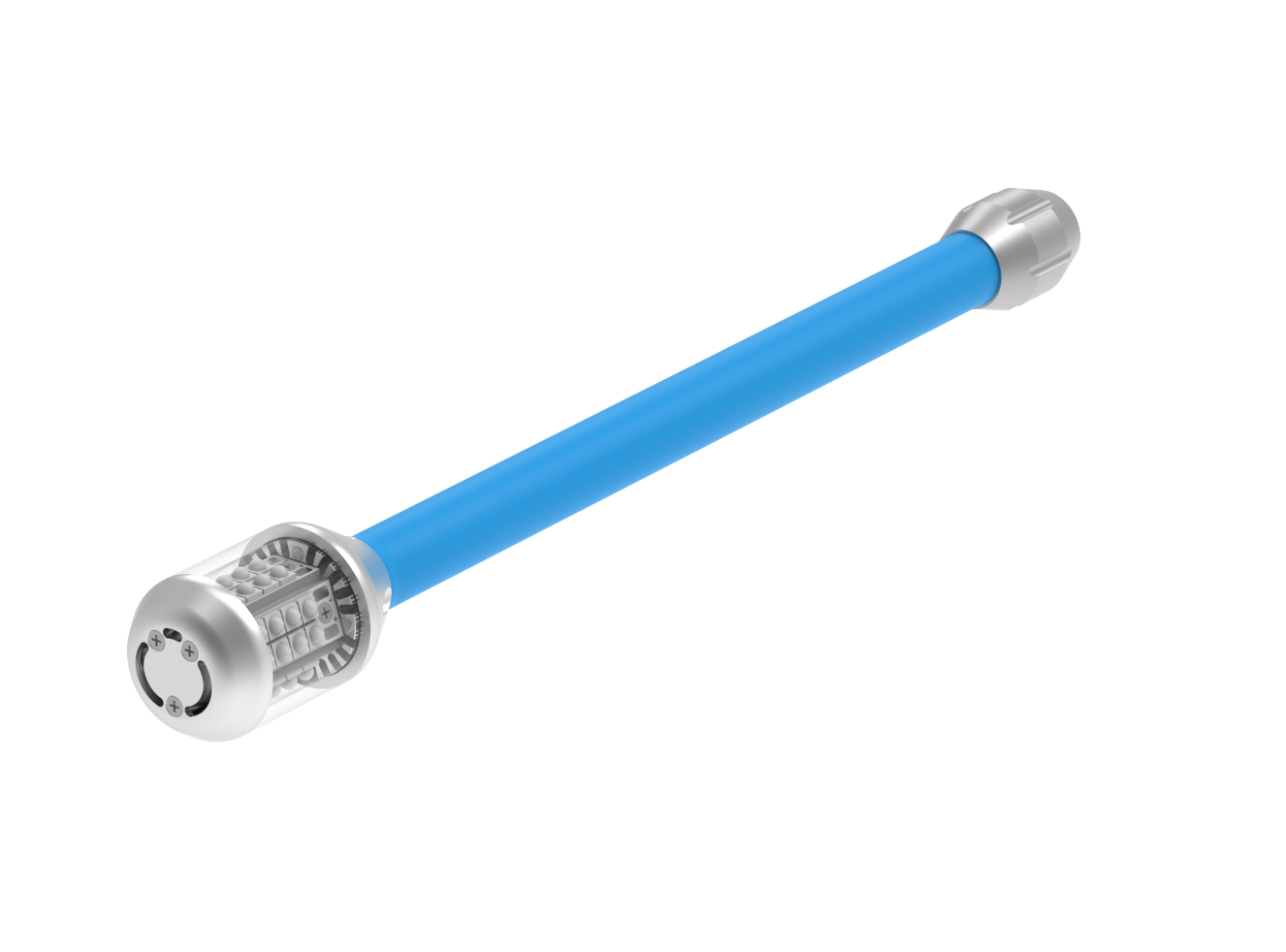

100W
2"-3"

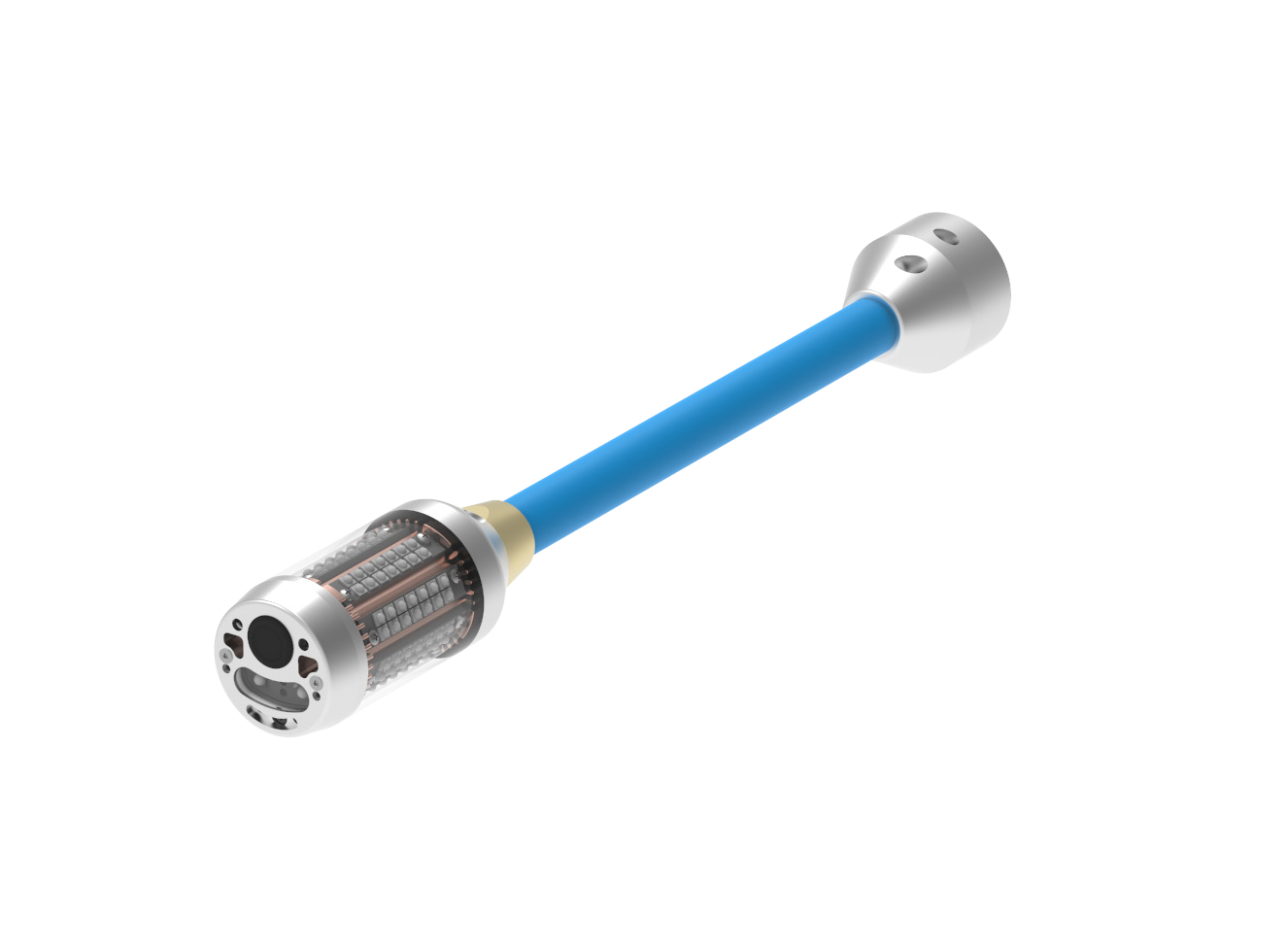

300W
4"-6"

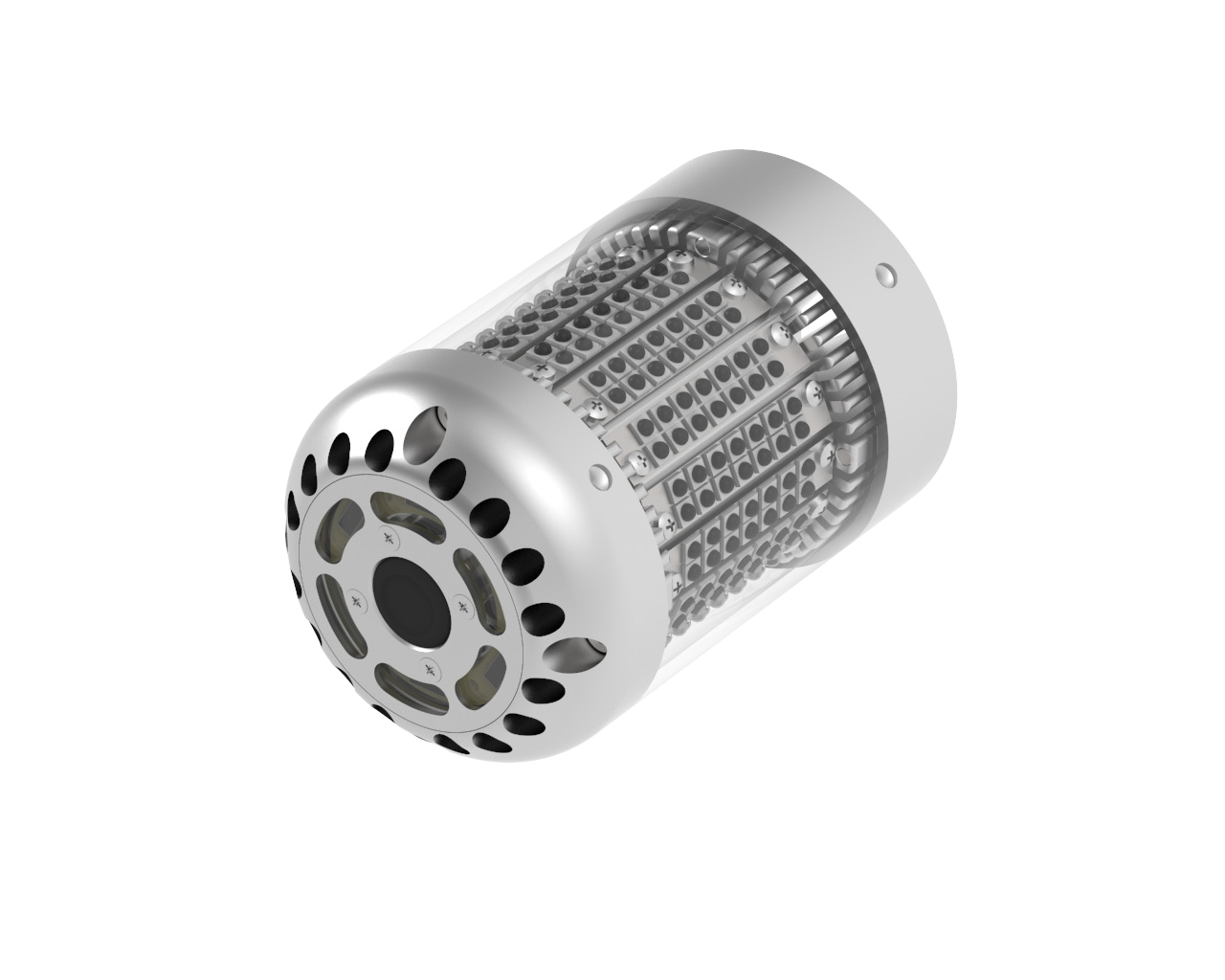

600W
4"-8"

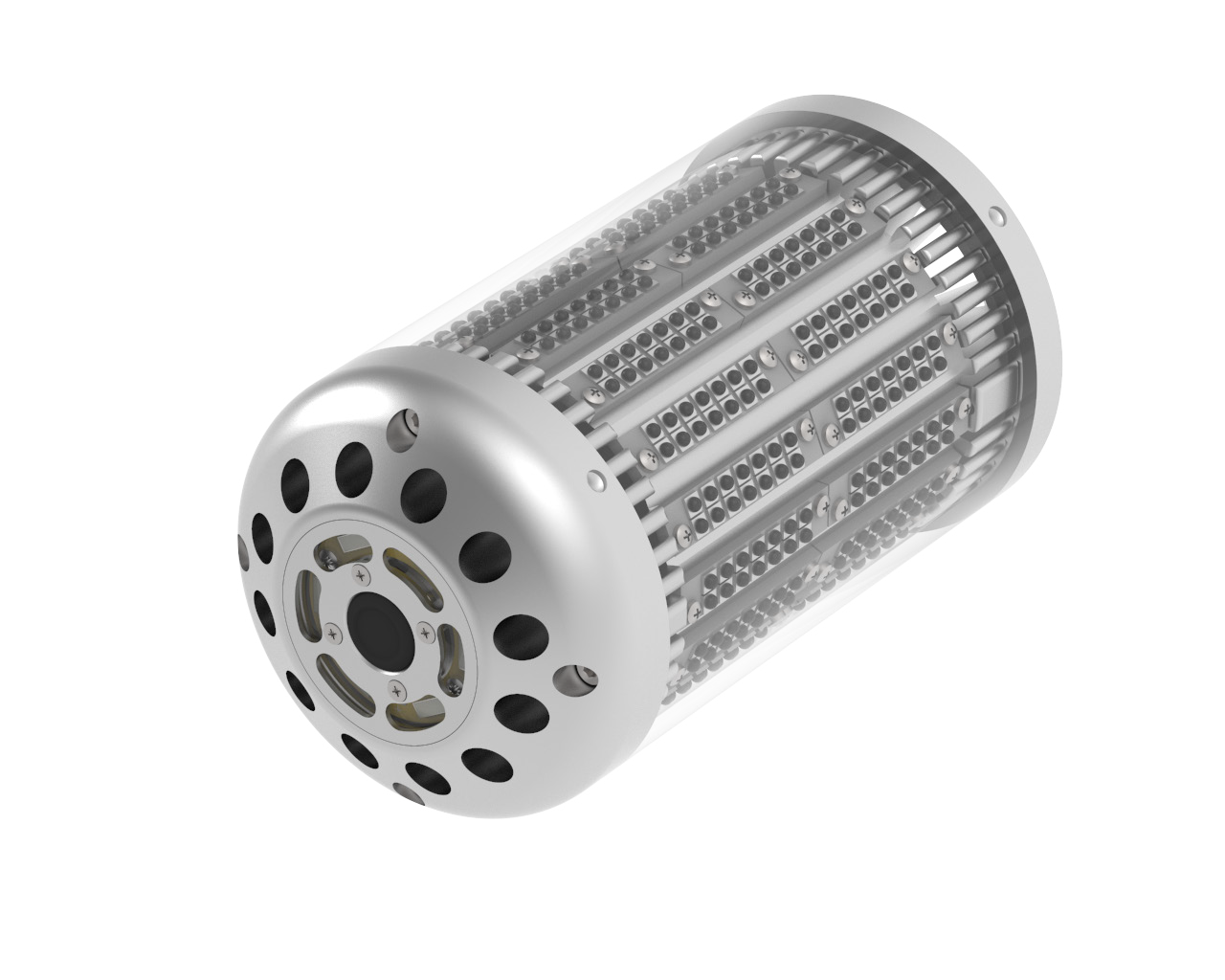

1200W
5"-12"

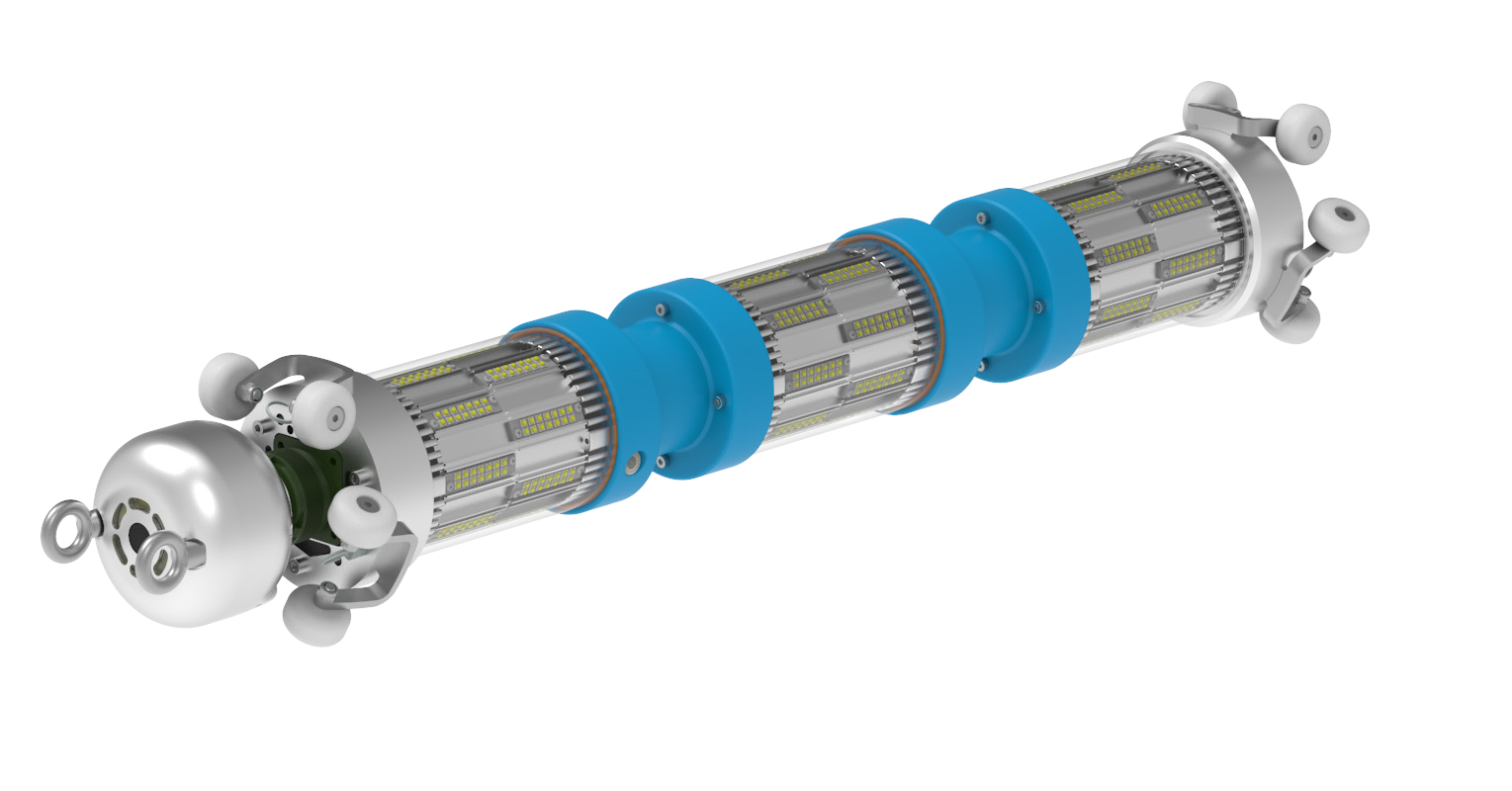

1800W
6"-24"
| Image | Power Draw | Diameter Range | Integrated Camera |
|---|---|---|---|
| | 100W | 2"-3" | No |
| | 300W | 4"-6" | Yes |
| | 600W | 4"-8" | Yes |
| | 1200W | 5"-12" | Yes |
| | 1800W | 6"-24" | Yes |
*The 100W SpectraLight kit has a length limit of 50ft, comes with its own motorized pulling unit, and is capable of navigating sharp 90° bends.
Why Trenchless Pros Choose SpeedyLight

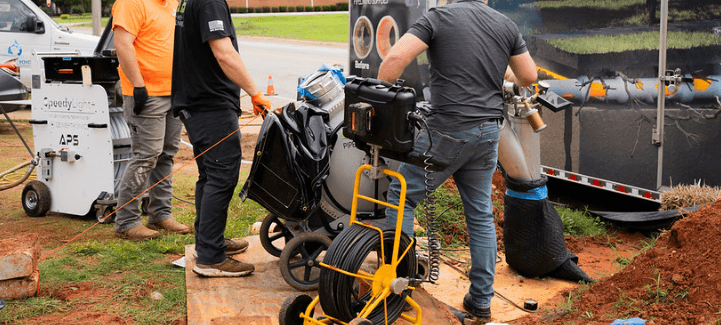

Cure On Your Schedule
SpeedyLight lets installers work at their own pace with resin that cures only when exposed. This freedom ensures precision, reduces costly errors from rushing, and allows crews to easily adapt to any on-site challenge.

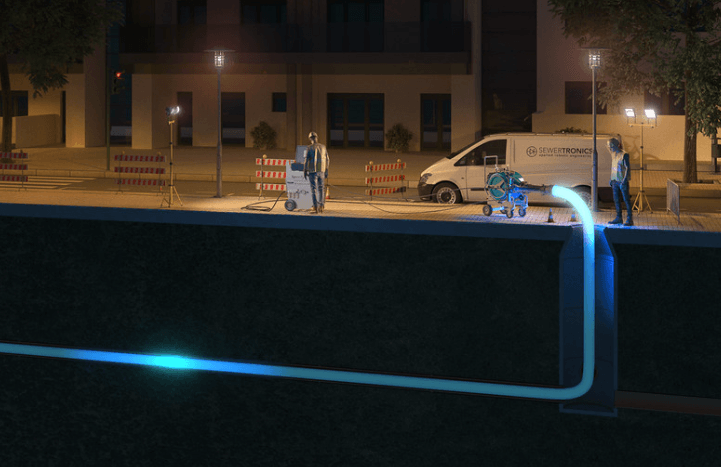

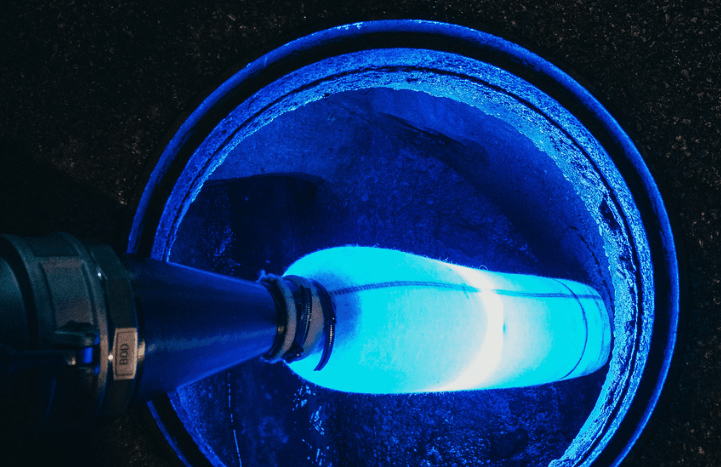

UV Curing for Real-World Jobs

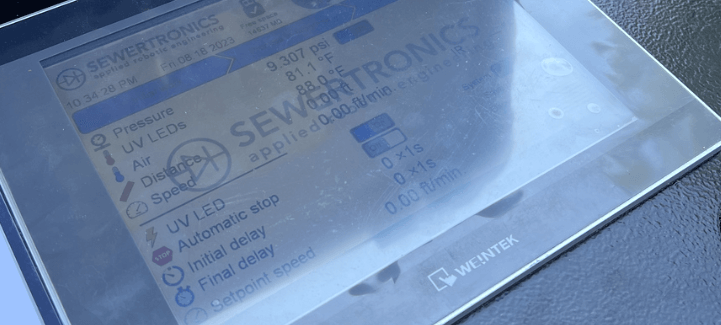

Consistent Curing in Complex Conditions
SpeedyLight systems bring UV efficiency to laterals, vertical stacks, and in-house connections. Crews benefit from consistent results that are not affected by weather, temperature, or other outside factors. With easier logistics and no need for bulky generators or boilers, SpeedyLight simplifies your setup. Every project is backed by digital QA/QC documentation that municipalities and property owners value for peace of mind and approval confidence.
Total Control Over Cure Timing
With SpeedyLight’s UV technology, resin cures only when exposed. That gives your crew freedom over setup and positioning. No rushing against pot life, just precise timing that ensures accuracy, reduces errors, and delivers reliable results on every install.
Traditional curing methods often tie up crews for hours and create scheduling uncertainty. By contrast, UV curing tracks directly with run length, delivering predictable and repeatable results every time. Contractors can plan their workdays with greater accuracy, reduce wasted labor, and ensure jobs are finished on time and on budget.
- Time You Can Plan Around. Length-based cure times mean crews face fewer external variables such as weather, water temperature, or ambient conditions. This predictability reduces downtime, avoids unnecessary delays, and allows contractors to schedule more jobs with confidence.
- Lightweight Power for Hard-to-Reach Spaces. Featuring extended reel lengths and powerful curing performance, SpeedyLight is built for efficiency on large or complex projects. From long-distance pipe runs to challenging access points, it delivers consistent curing speed and reliability where traditional systems fall short.
- Field Tested Performance. Interchangeable SpectraLight heads and UV resins provide reliable performance across a wide range of pipe diameters and configurations. Proven on real job sites worldwide, the system ensures consistent results for contractors who need equipment they can trust.

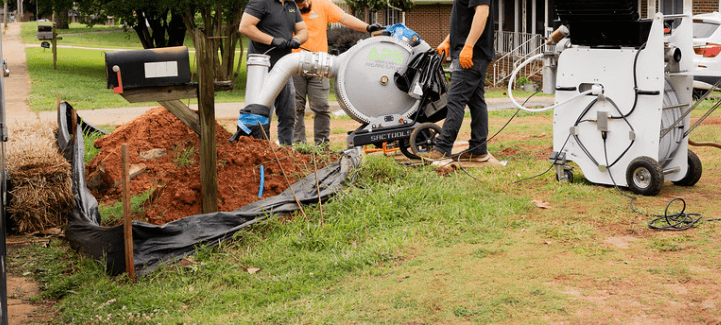

APS stands behind every SpeedyLight system with unmatched U.S. training and support. From choosing the right materials and planning your project to troubleshooting challenges on-site, our experts ensure you get the most out of your investment. We help your crews work smarter, reduce errors, and achieve better outcomes that lead to stronger customer relationships and long-term profitability.
Ready to See SpeedyLight in Action?
Request a demo or send us your project scope and we’ll tailor a SpeedyLight package to suit your needs. Discover how UV curing technology can improve your workflow, cut downtime, and increase profitability on every job.
Request A Quote or More Information About SpeedyLight
Fill out the form below, and we’ll get back to you within 1 Business Day.
Trusted by CIPP & Trenchless Rehabilitation Experts
Discover why industry leaders in pipeline rehabilitation and sewer repair trust our cutting-edge solutions
"I’ve got six different high-speed cable machines. The only thing we use anymore is the Raptor Cutter from American Pipelining Solutions. It’s pricey, but you’ll never regret it."
"It absolutely has paid for itself. Even just a little bit of increased efficiency makes all the difference in the world in terms of saving time. So in that regard, this has been a really good unit. We’d definitely buy another one. In fact, I need to phase out another machine, so we’re thinking about buying another Raptor within the next few months."
"Best school to attend to learn pipe lining. Chris, the trainer, is super knowledgeable and will make sure you aren't leaving until you are comfortable and know what you're doing. Leaving here super confident and set up for success."
"I had an absolute blast attending the week-long class last week. The instructor, Chris, was top notch and super thorough in his training. We appreciate the knowledge, lunch, and all the laughs."
"I'll keep this short and sweet. Great experience all around - training, facilities, technology, products and much more. I want to highlight Chris Dean, willing to answer questions at 8pm in the evening on his day off, providing guidance and answers to help you get the job done. 5 stars all day long!"
"The APS crew is killing the game. Supply, training, on-the-job support - total package. Great company. Great people. APS will help you to take your business to the next level if you want it."
"I had zero lining experience before attending the APS class, and within a month, I became extremely comfortable running a trailer. Chris and APS earn 5 stars for their professionalism, detailed instruction, and unwavering support even after the class. 100% recommend investing in this company—they've truly mastered their craft."
"First off, the training they offer is incredible! The facility has everything you need to learn about this extremely specialized technology, and the instructors are the best in the country! Chris Dean is an absolute guru. His patience and knowledge is something that I cannot thank him enough for."
"Absolutely worth the 5 stars, learned so much in just a week! 👍🏻👍🏻👍🏻"
"Chris Dean did an amazing job training my team! Amazing product! APS is a fantastic company, best in the business."
"Had a great experience here in Anderson, SC. The trainer Chris is a world-class guy. I feel very confident going back to OKC and applying what I learned here."
Related Blog Posts
Learn more about the SpeedyLight and how it can benefit your business
-
A Guide to APS's Trenchless Technology Certifications
APS training helps beginners and pros master pipeline rehab. Advance your career and build real-world trenchless skills.
-
Exploring the Innovative Trenchless Pipe Repair Method
CIPP trenchless repair is efficient, eco-friendly, and cost-effective for sewer lines, drains, and water systems.
-
Diversifying Your Plumbing Business With CIPP Services
Adopt CIPP trenchless pipe repair to reduce impact, improve service, and unlock new business opportunities.
Frequently Asked Questions
SpeedyLight+ handles a broad range of laterals/small mains (DN50-DN600 / 2"-24"). SpeedyLight VX focuses on vertical/in-house DN70-150 (3"-6")
No. These UV systems are designed for low power consumption and can run from standard power in most scenarios.
Yes. With appropriate head selection and liner, common DN100 (4") 90° bends are manageable; gentle double 45° bends may be possible at smaller diameters.
Speedylight is compatible with all of our liner. Some uncoated liners will require a calibration tube to be shot within the liner to protect the light head from resin.
Cure speed depends on diameter, thickness, resin, and conditions. As a guide, crews often report curing a ~22' 6" lateral in minutes with SpeedyLight+.
Systems can export cure logs and parameters for QA/closeout; camera-equipped heads also provide visual confirmation.
Yes. APS offers onboarding, APSTA certifications, and live jobsite technical support.
Yes - with a dedicated transparent calibration tube to allow UV light penetration and proper pressurization.
Standard sizes include 100m (328ft) for the SpeedyLight+ and 40m (130ft) for the SpeedyLight VX. The SpeedyLight+ also has 50m (164ft) and 70m (230ft) options. Ask APS for current configurations.
Tell us your diameter(s), bend frequency, and typical lengths. We’ll recommend the correct SpectraLight™ head and resin pairing.
